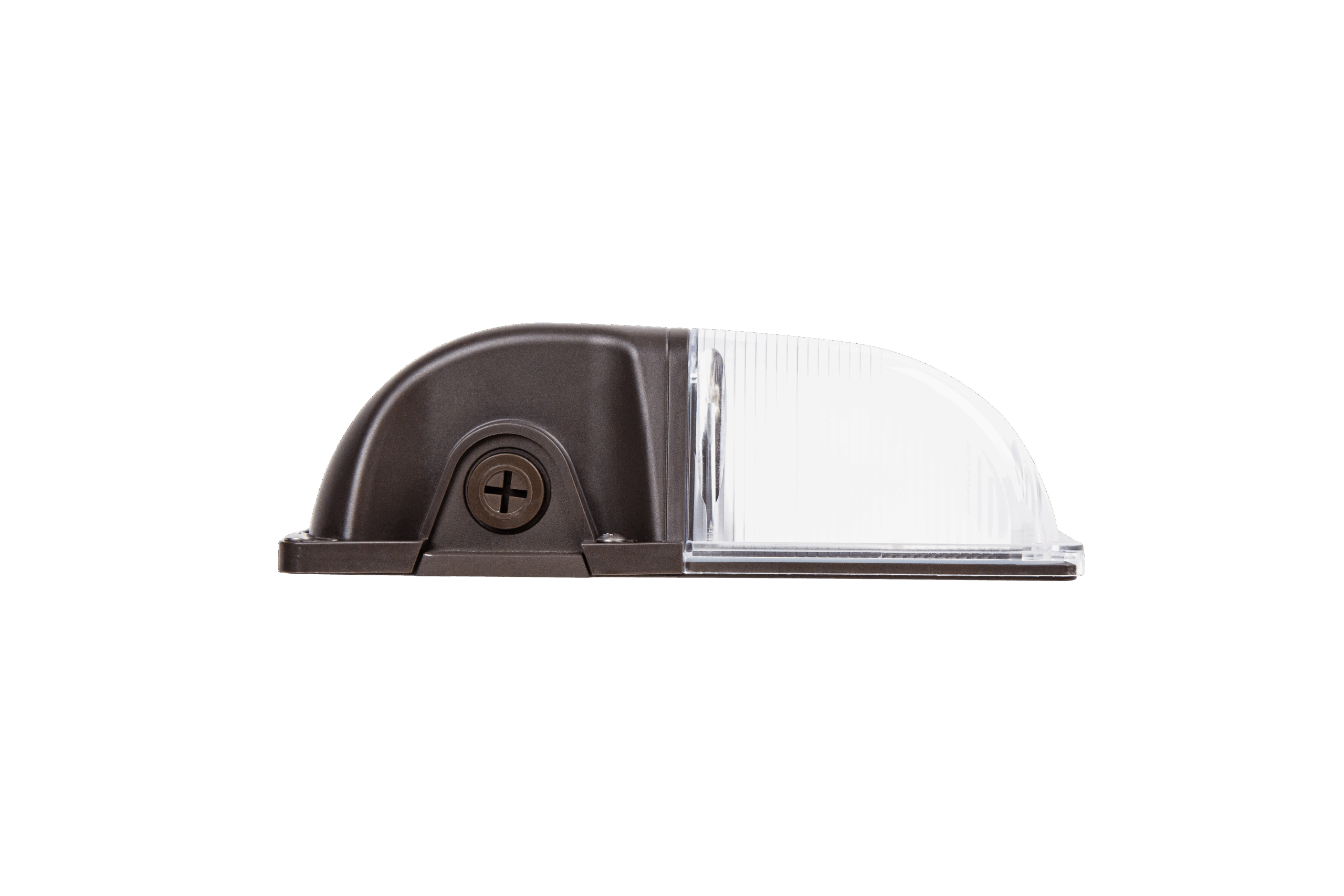

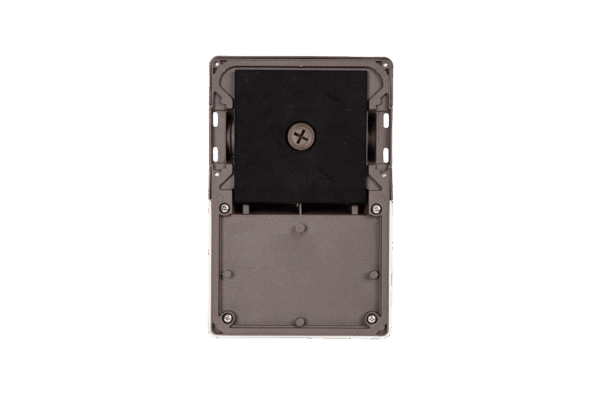

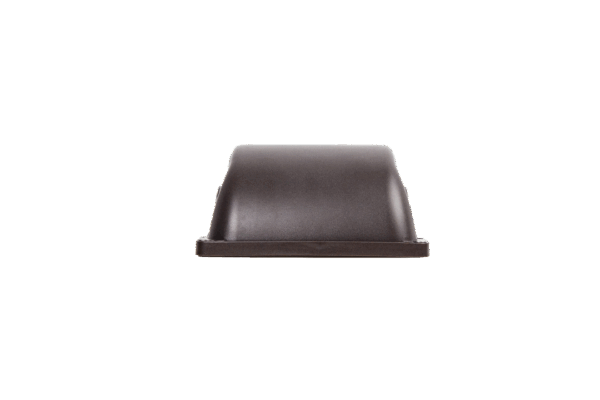

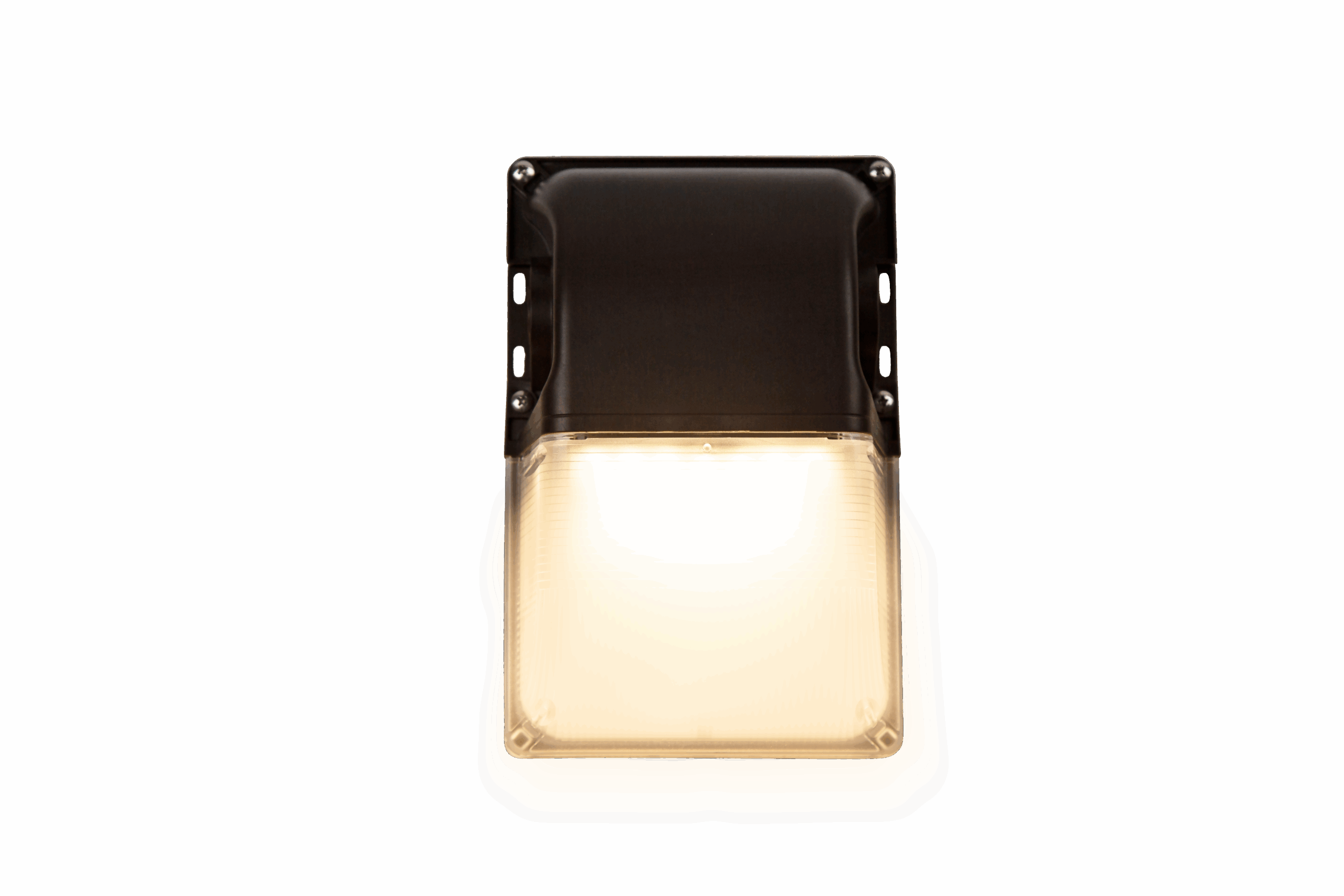

Economy Wall Pack – 2,009 to 3,923 Lumens – Lumen & Kelvin Field Selectable

Housing

• Premium powder-coat, die cast aluminum, Bronze housing.

Electrical

• Operating temperature (ambient): -30°C to 50°C (-22°F to 122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 2kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

Optical System

• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• Provides a range of 2,009 to 3,923 nominal lumens.
• Long-life LEDs provide 153,000 hours of operation with at least 70% of initial lumen output (L70), and 46,000 hours with at least 90% of initial lumen output (L90).
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance < -0.0021 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 80.

Mounting

• Wall mounting kit.
