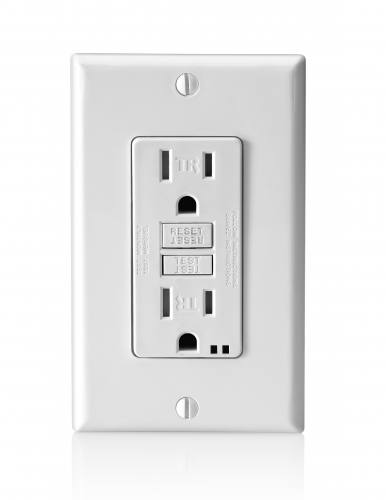

20 AMP Self-Testing GFCI – TAMPER RESISTANT – White – Wallplate Included

Rated 0 out of 5

Model: 13-GFCI-ST-20TR-WH-K

20 AMP SELF-TESTING GFCI – TAMPER RESISTANT

Self-Test GFCI Outlet with Indicator LED Light, Nylon wall plate and Screws Included, it offers ground fault protection in bathrooms, kitchens and any area of the home. It is designed to meet the latest UL standard. It can also prevent some fires, like when a live wire touches a metal conduit. Automatically tests the GFCI every time the reset button is pushed in, the GFCI will not reset if its circuit is not functioning properly. Indicator light, wall plate and screws are included. GFCIs should be tested monthly to ensure they are providing protection, press the test button, then reset button, if the indicator light turns red, it must be replaced. Cannot be reset if miss-wired. Back wire featured for easy installation. End of life function, automatic end of life detection and warn action.

ELECTRICAL SPECIFICATIONS Input • Input Voltages: Universal120 or 277VAC, 60Hz (User selectable with (2) wire jumpers provided) • Input Frequencies: 60Hz ±2% • Input Protection: Provided by Service Panel rated at 20 amps maximum Output • Output Voltages: 120 or 277VAC (60Hz) • Efficiency Rating: 98% at full rated load (line) • Waveform: Sinusoidal (digitally controlled) • Static Voltage: ±5% during battery discharge. 0-100% linear load. • Output Frequencies: 60Hz. ±0.3Hz during emergency cycle • Output Distortion: Less than 3% THD (linear load) • Transfer Time: Less than 1.0 second. • Load Power Factor Range: 0.88 Lead to 0.88 Lag. • Minimum Loading: 0% of rated system capacity. • Output Protection: Circuit breaker. HOUSING Heavy duty steel cabinet is finished in white based-on powder providing scratch and corrosion resistance. MOUTING Designed for mounting to walls by means of keyhole slots provided in the back of the unit housing. BATTERY Battery: Sealed Lead Calcium (10 year life) Battery Voltage: 72VDC for 03-LPS-1150, Runtime: 90-minutes standard- based on battery performance at (25°C). Other runtimes available, consult factory. Battery Protection: Low Voltage Battery Disconnect protects the battery from being severely damaged by deep discharge during prolonged power failures. Reverse Polarity, DC Overload and Short Circuit Protection provided by a DC input breaker and fuse. CHARGER Charger Type: Fully automatic, temperature compensated, dual-mode charger Power Consumption: (charger only) 73W maximum (6.7W in standby) for 03-LPS-1150 model. Recharge Duty Cycle: Meets UL924 requirements Controls: Momentary test switch, AC-ON, Charge-ON and Inverter-ON LED indicator lights Safety Circuitry: AC Lockout prevents battery discharge prior to initial unit power-up. Brownout Protection automatically switches the unit to emergency mode when utility voltage is significantly reduced.
