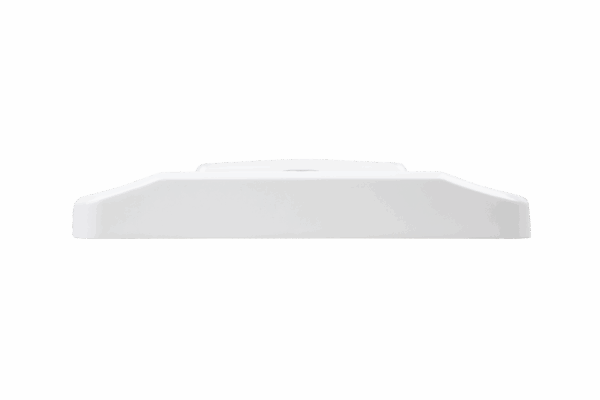

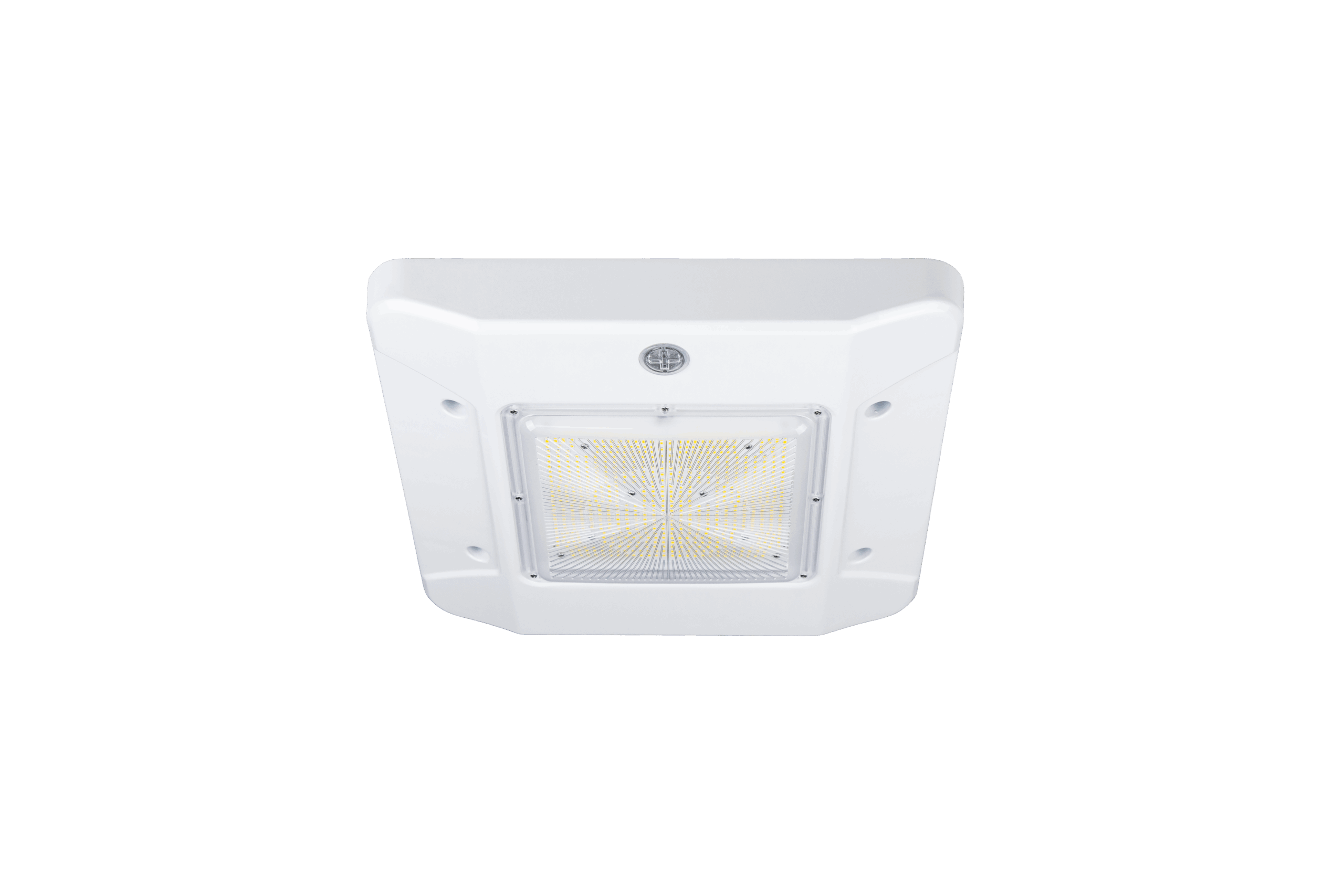

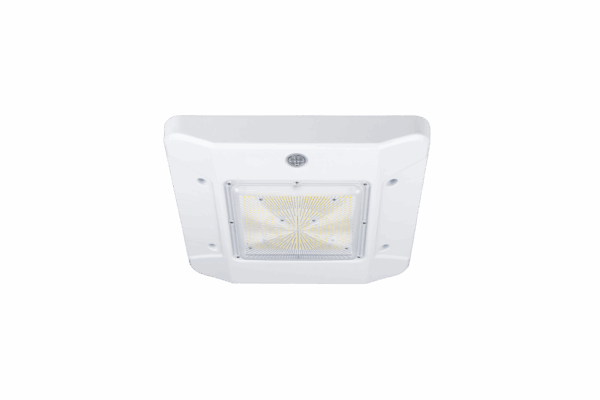

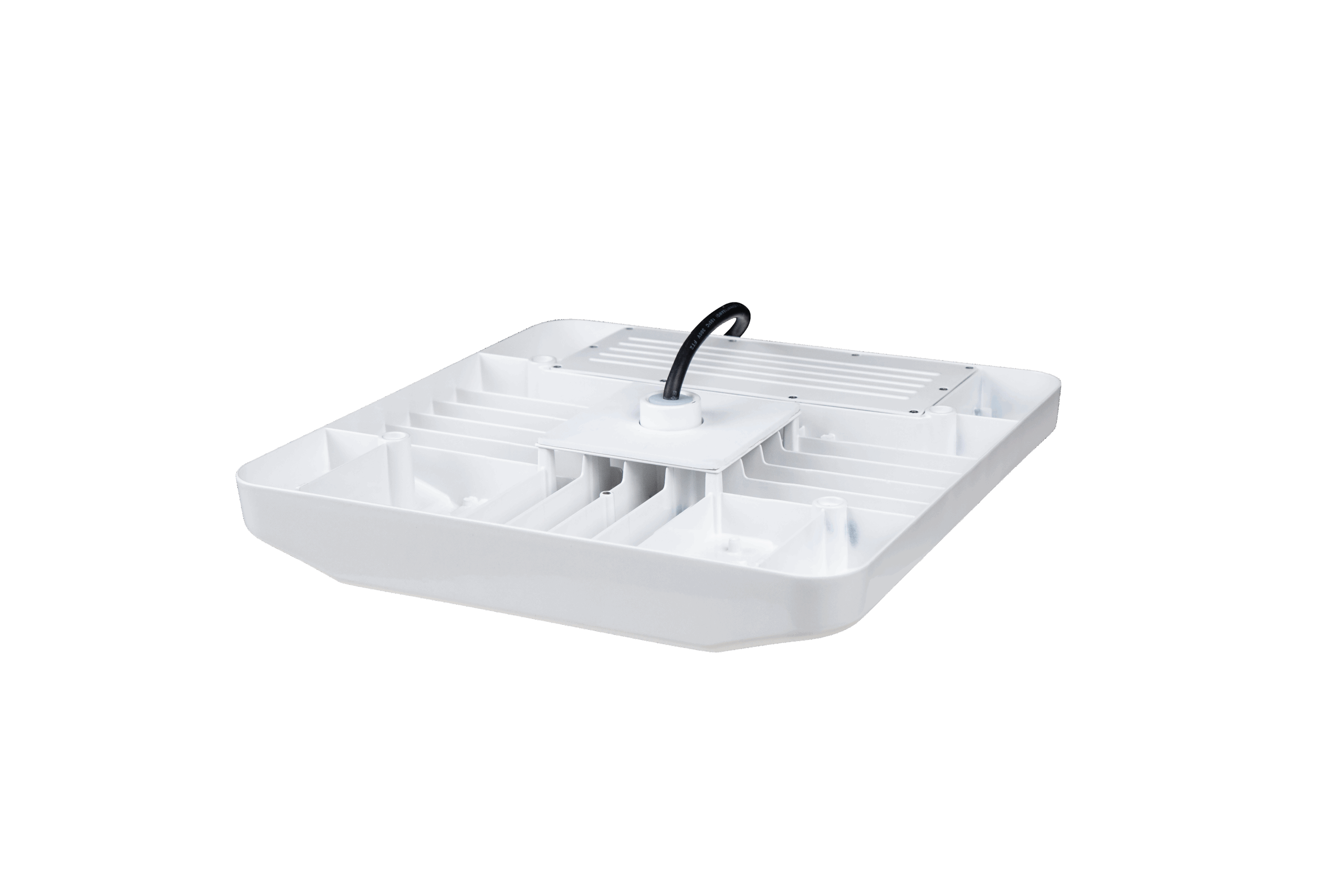

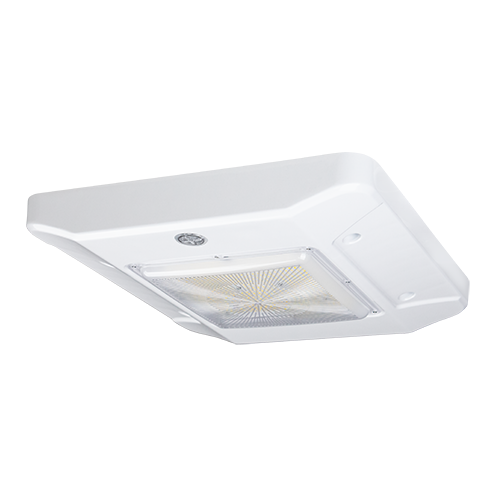

LED Canopy High Lumen – Lumen Selectable

Model: 06-CPHL-272219L-5K

This high-lumen LED fixture features a white, die-cast aluminum housing with a premium powder-coated finish and surface mount design. It delivers 19,000 to 27,000 lumens at a 5000K color temperature, with long-life LEDs rated for up to 173,000 hours (L70). Built for durability, it is IP65-rated, cULus listed for wet locations, and backed by a 5-year warranty.

Housing

• Premium powder-coat, die cast aluminum, White housing.

Electrical

• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F) . • Universal 120-277 AC voltage (50-60Hz) is standard. • 0-10V DC dimming drivers are standard. • Input transient surge protection = 6kV. • PF > 0.9; THD < 20%.

Optical System

• Polycarbonate lens. • 5000K (cool white) color temperatures. • Provides a range of 19,000 to 27,000 nominal lumens. • Long-life LEDs provide 173,000 hours of operation with at least 70% of initial lumen output (L70), and 52,000 hours with at least 90% of initial lumen output (L90).* • LED chromaticity based on < 6-step ANSI quadrangles. • Color Rendering Index > 80.

Mounting

• Surface mounting.

Code Compliance & Warranty

• cULus listed for wet locations. • Complies with FCC Part 15, class A. • IP65 rated for ingress protection. • 5-year warranty on all electronics and housing
33765
