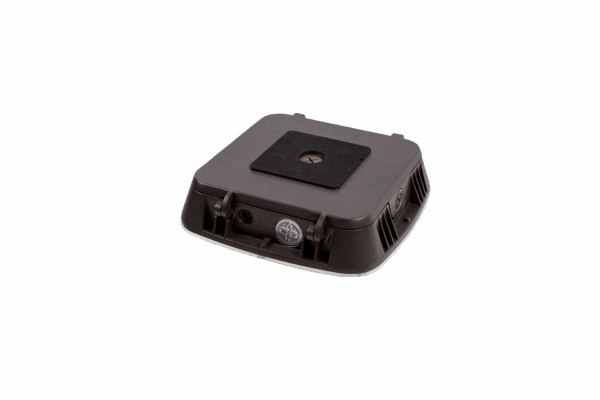

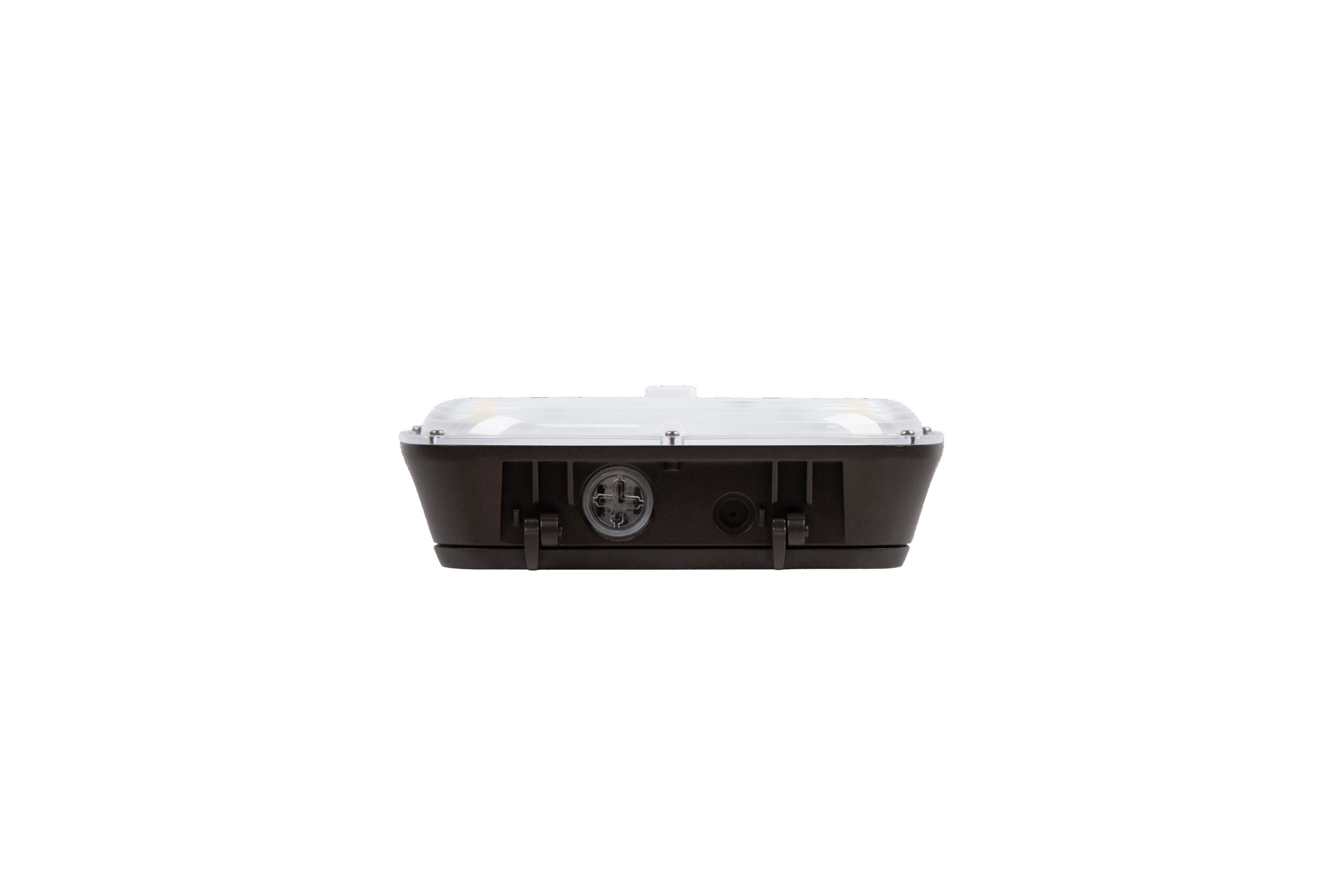

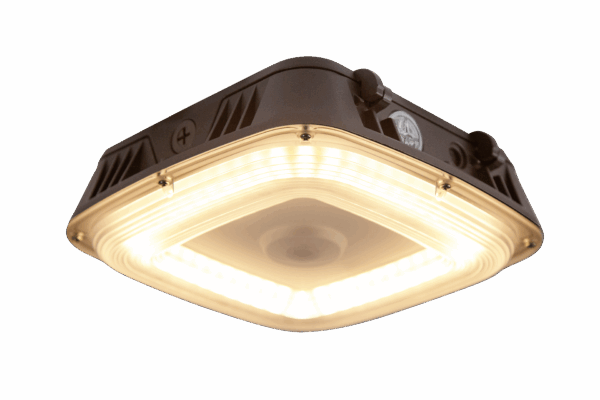

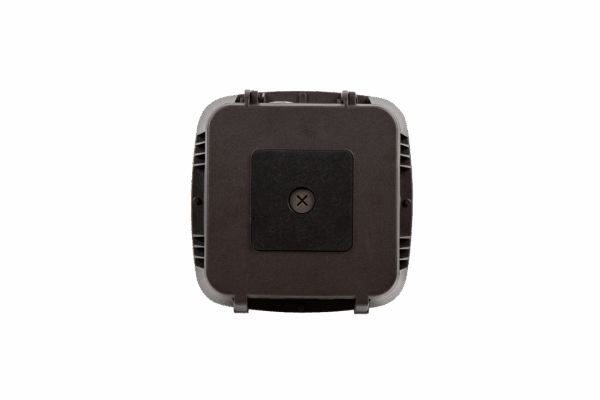

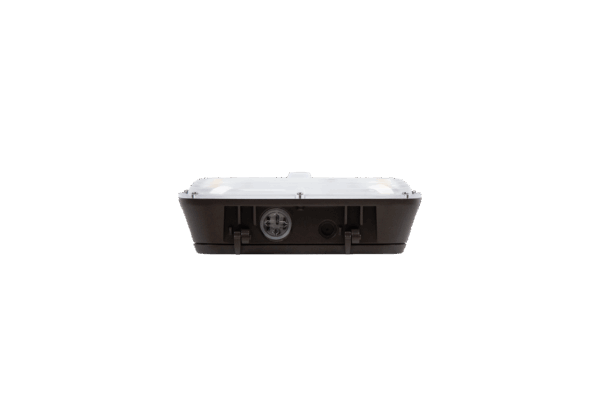

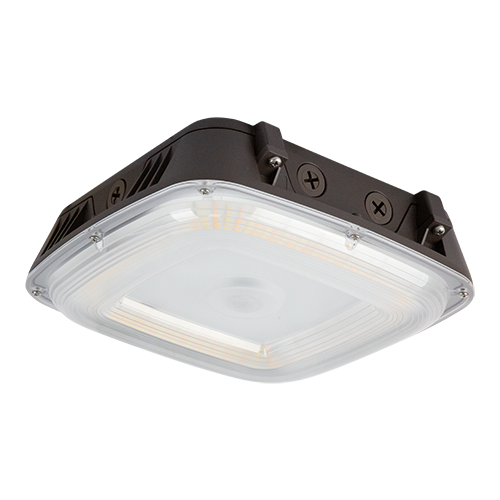

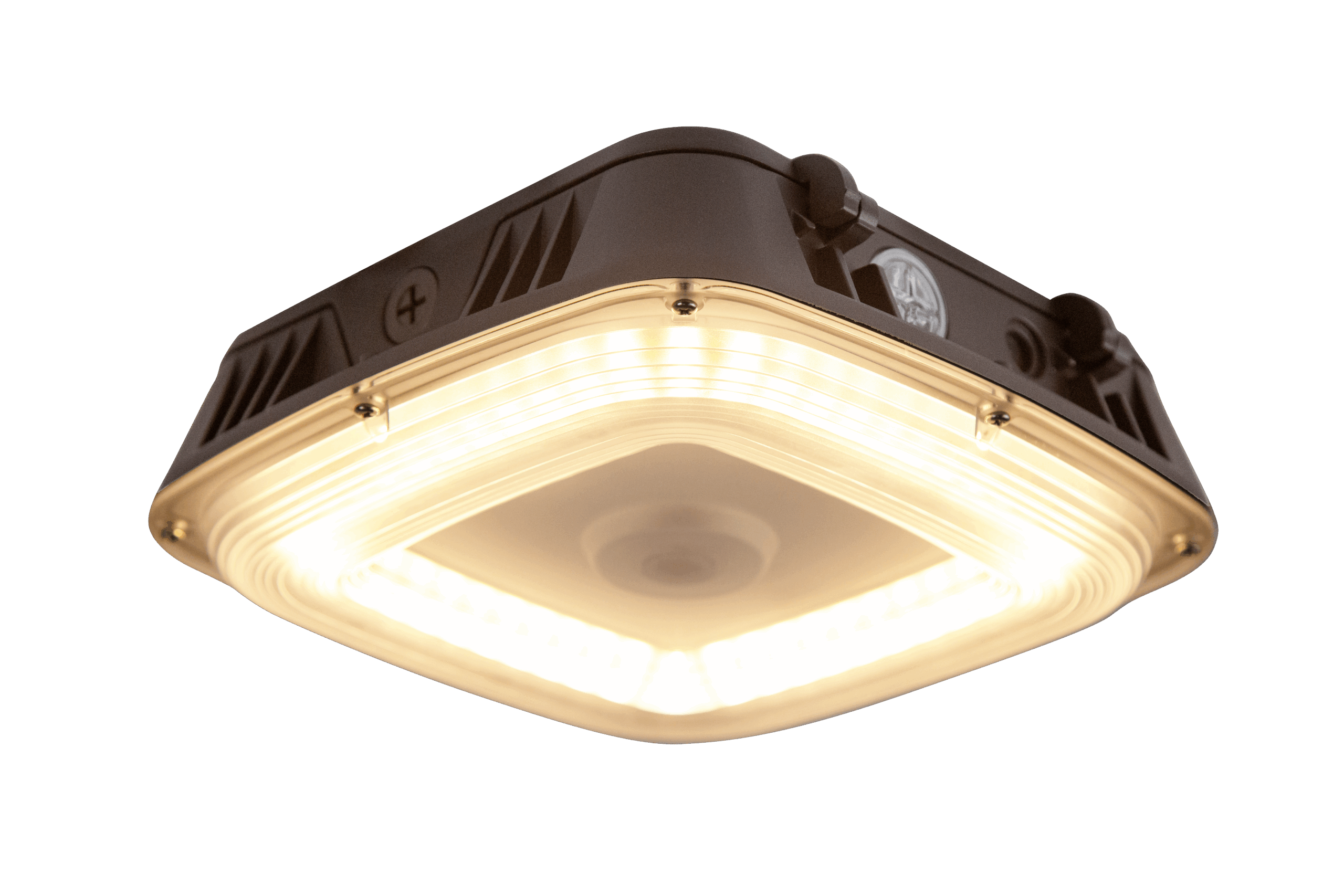

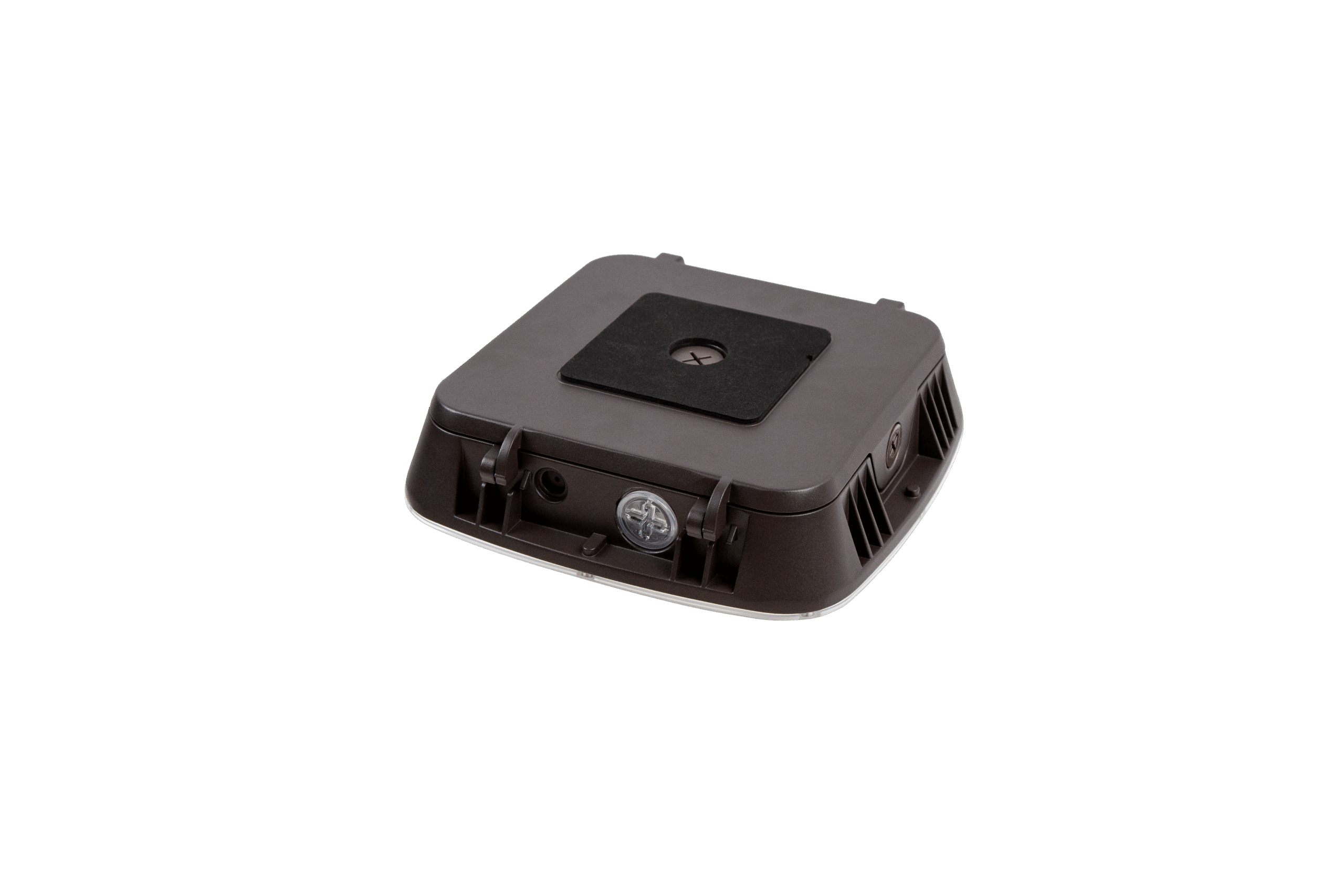

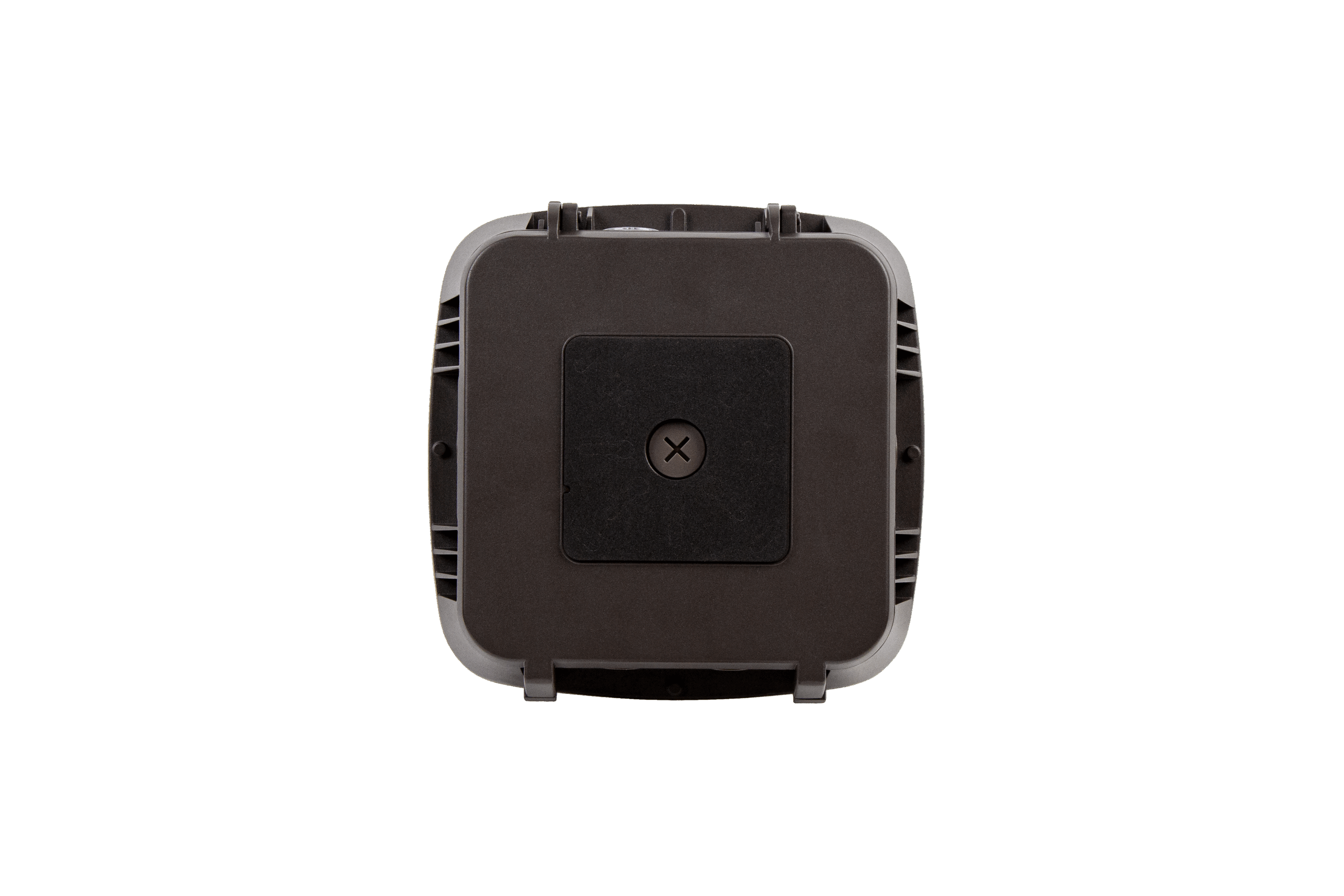

This LED Canopy features a durable die-cast aluminum housing with a premium powder-coat finish, available in Bronze or White. The optical system uses a polycarbonate lens, 3 color temperature options, and provides 3,000 – 12,000 lumens. It is designed for surface mounting and includes an integrated, switchable photocell. With IP65 and IK10 ratings, it’s ideal for wet and rugged environments.
Housing
• Premium powder-coat, die cast aluminum, Bronze or White housing.
Electrical
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
Optical System
• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.*
• Provides a range of 3,000 to 12,000 nominal lumens.*
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).**
• Beam angle 135°.
• Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance <- 0.0024 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 80.
Mounting
• Surface mounting.
Code Compliance & Warranty
• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK10 rated for impact protection.
• 5-year warranty on all electronics and housing
