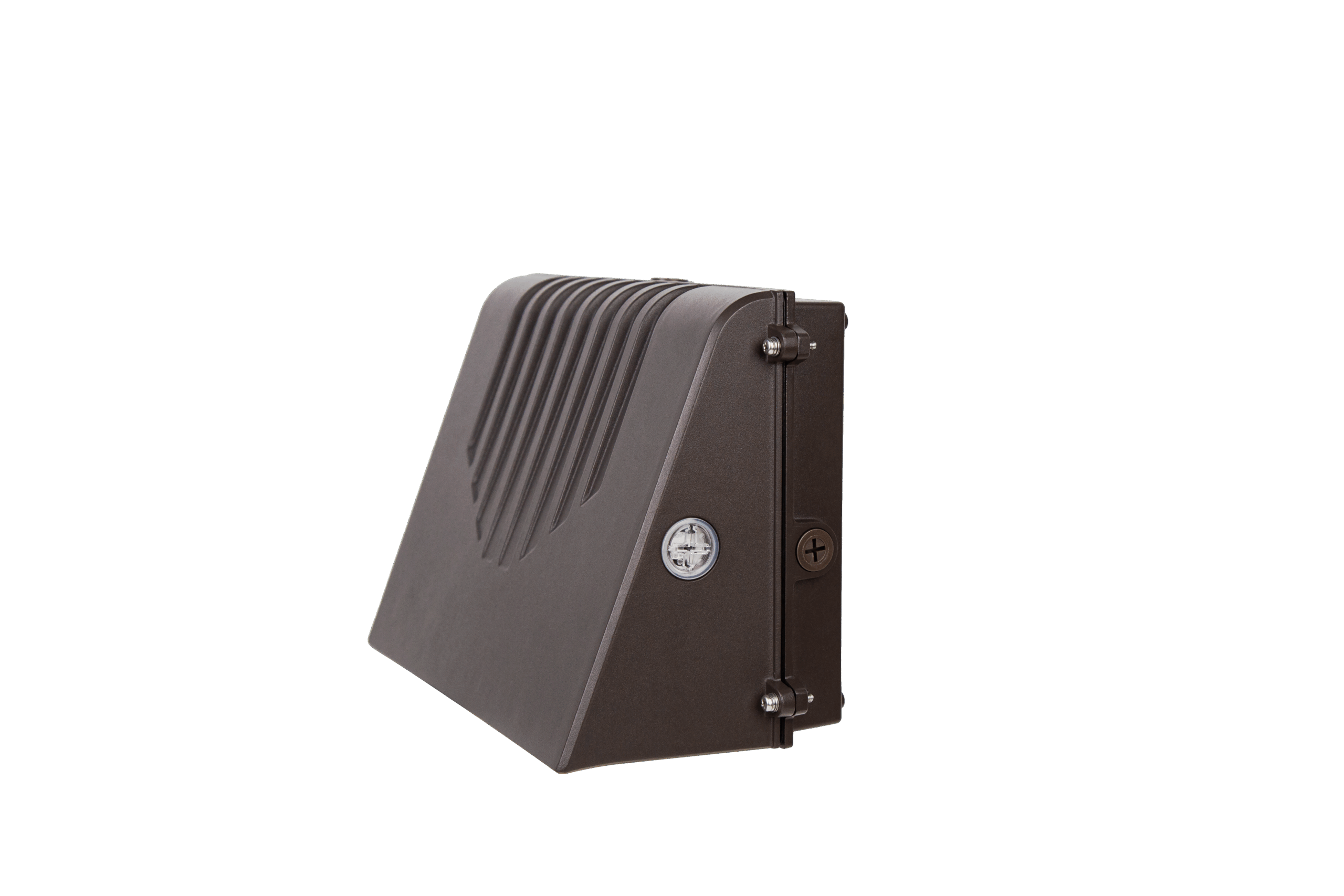

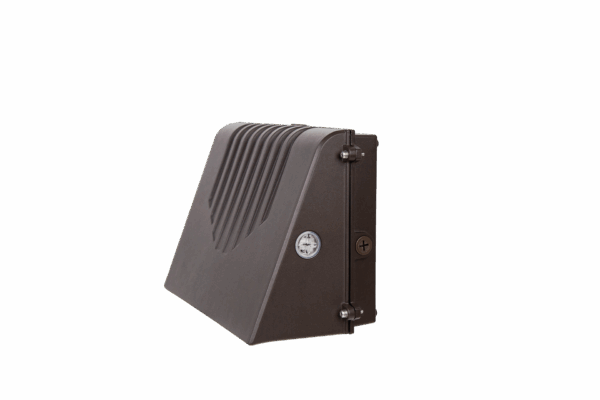

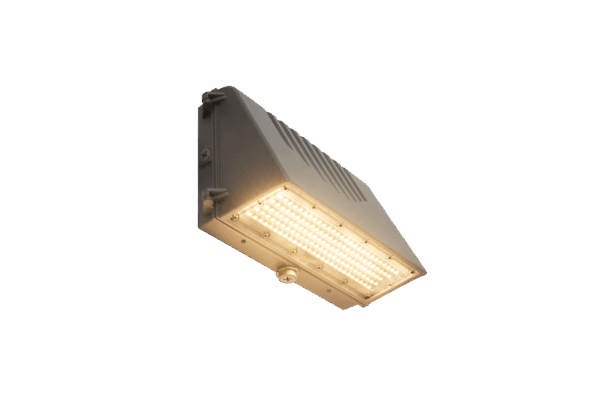

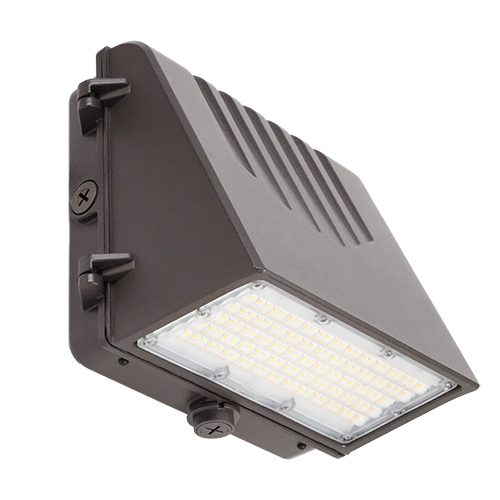

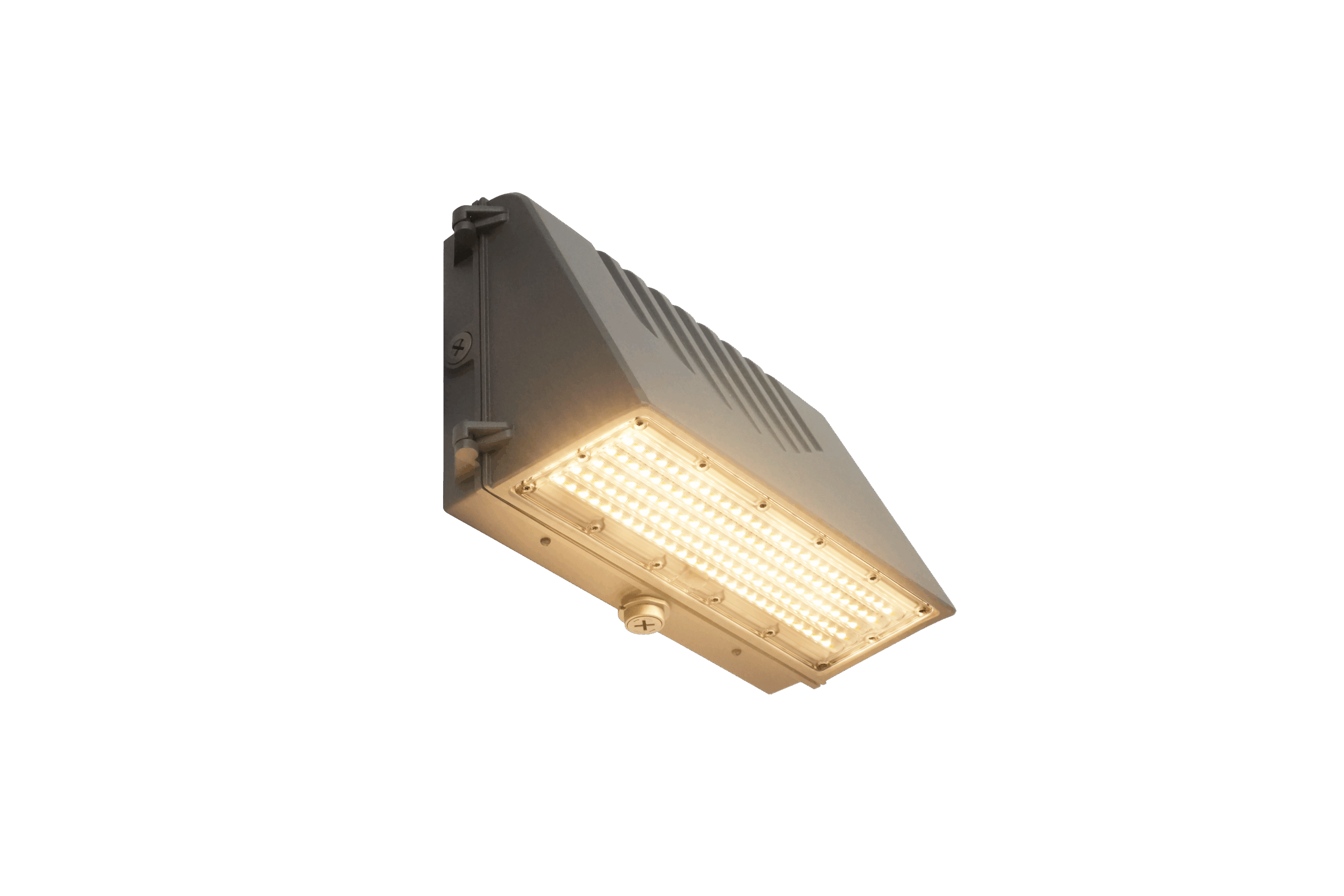

LED Full Cutoff Wall Pack – Sensor Ready, Lumen & Kelvin Field Selectable

Rated 0 out of 5

Model: 06-WPFCSR-3CCT

View Spec Sheet

Lumens

Emergency Driver

Clear

This high-performance LED wall pack features a bronze, die-cast aluminum housing and a durable polycarbonate lens. It offers field-selectable color temperatures (3000K, 4000K, 5000K) and delivers up to 17,186 lumens depending on model. It is designed for demanding environments and includes a switchable integrated photocell. The fixture is sensor-ready (sensor and remote sold separately).

Housing

Premium powder-coat, die cast aluminum, Bronze housing.

Electrical

Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10V DC dimming drivers are standard.
Integrated photocell is standard. Photocell can be enabled or disabled by switch.
Input transient surge protection = 6kV.
Power factor > 0.90.
Total Harmonic distortion < 20%.

Optical System

Polycarbonate lens.
Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
06-WPFCSR-9865L-3CCT provides a range of 4,815 to 9,010 nominal lumens.
06-WPFCSR-17151310L-3CCT provides a range of 9,337 to 17,186 nominal lumens.
Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).

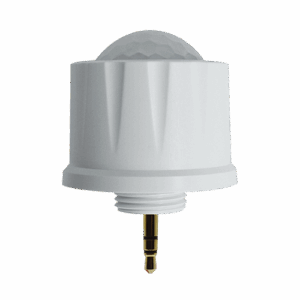

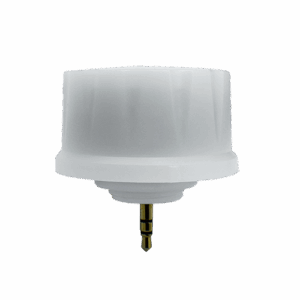

Screw in sensor ready. Occupancy sensor and remote control sold separately. Remote control required to change factory sensor settings.
LED chromaticity based on < 6-step ANSI quadrangles.
LED color maintenance < -0.0034 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Color Rendering Index > 80.
