LED Half Moon Full Cutoff Wall Pack – 8,165 to 13,690 Lumens – Lumen & Kelvin Field Selectable

Rated 0 out of 5

Model: 06-WPHM-13108L-3CCT

View Spec Sheet

Request product pricing

Call for Pricing now: 833-504-9980

Call for pricing now

or

Email

This field is for validation purposes and should be left unchanged.

Name(Required)

Email(Required)

Phone(Required)

This field is hidden when viewing the form

Division

This field is hidden when viewing the form

Form Name

This field is hidden when viewing the form

Product URL

CAPTCHA

Build an online quote instead

Our lighting professional will call you to provide pricing.

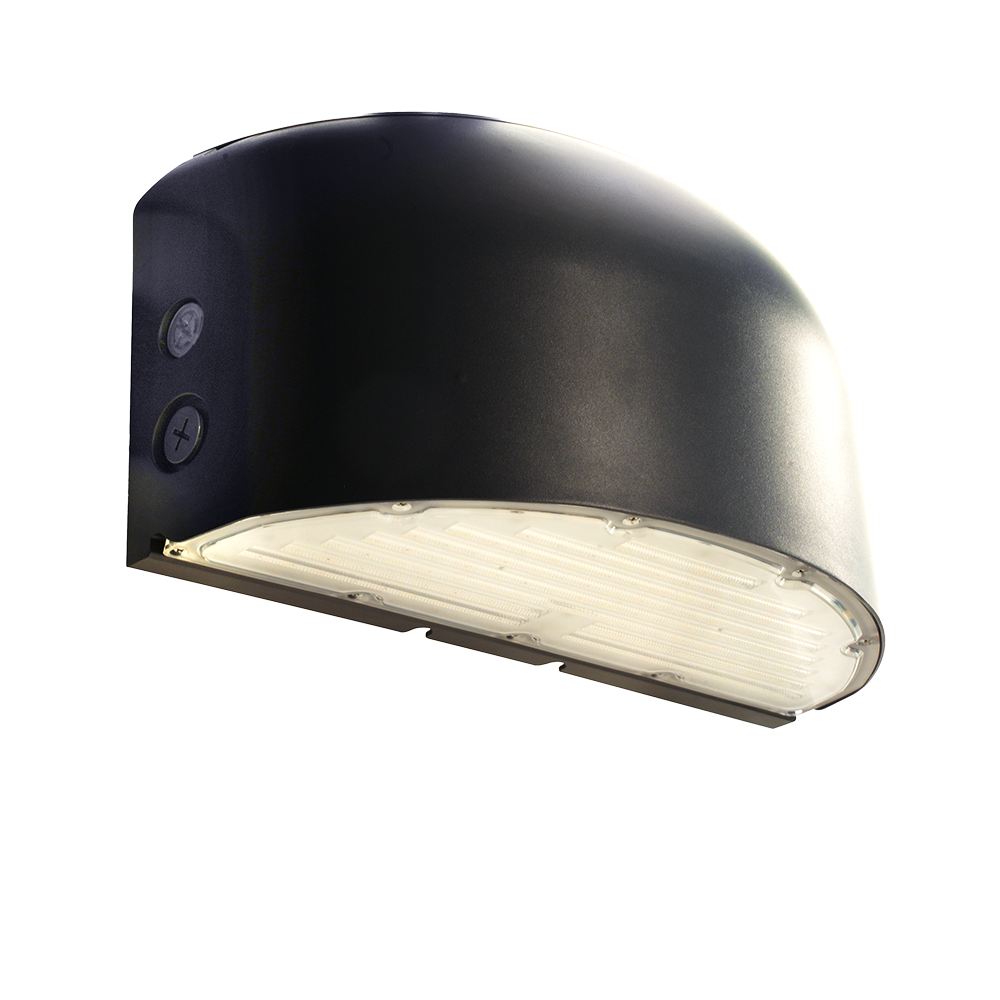

This half-moon full cutoff wall pack features a durable bronze, die-cast aluminum housing with premium powder coat finish and polycarbonate lens. It is designed for wall mounting and has an integrated on/off photocell. It also features field-selectable CCT (3000K/4000K/5000K).

Housing

Premium powder-coat, die cast aluminum, Bronze housing.

Electrical

Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10V DC dimming drivers are standard.
Integrated photocell is standard. Photocell can be enabled or disabled by switch.
Input transient surge protection = 6kV for 06-WPHM-13108L-3CCT.
Power factor > 0.90.
Total Harmonic distortion < 20%.

Optical System

Polycarbonate lens.
Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
06-WPHM-13108L-3CCT provides a range of 8,165 to 13,690 nominal lumens.
Long-life LEDs provide 160,000 hours of operation with at least 70% of initial lumen output (L70), and 48,000 hours with at least 90% of initial lumen output (L90).
LED chromaticity based on < 6-step ANSI quadrangles.
LED color maintenance < 0.00310chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Color Rendering Index > 80.

Mounting

Wall mounting kit.

Code Compliance

cULus listed for wet locations.
Complies with FCC Part 15, class A.
IP65 rated for ingress protection.
IK08 rated for impact protection.

Warranty

5-year warranty of all electronics and housing.
