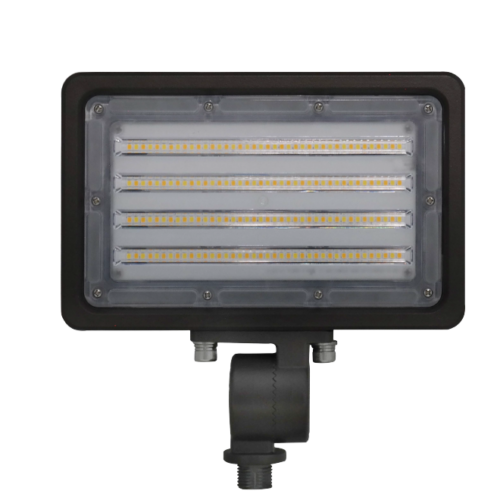

LED Multi-Purpose Area Luminaires Kelvin Field Selectable

Model: 08-MPAL-KFS
Housing
  • Die cast aluminum housing with durable, dark bronze powder coat finish.
  • Polycarbonate lens.
  • Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
Mounting
  • Easy installation in new construction or retrofit.
  • Standard aluminum die-cast knuckle-mount for junction box installation.
  • Yoke-mount option provides secure attachment to flat surfaces, 4L & 7L only, sold separately.
  • Line voltage ground stake allows for easy installation for landscape illumination, sold separately.
Electrical
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming drivers are standard.
  • Power factor > 90.
  • Total harmonic distortion < 20%.
Optical System
  • Field selectable 3500k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.
  • Long-life LEDs provide up to 149,000 hours of operation with at least 70% of initial lumen output (L70).*
  • Available models provide from 2,000 to 7,200 lumens, and from 125 to 156 lumens per watt (LPW).
  • Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
  • Color rendering index > 80.
Code Compliance
  • cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
  • IP65 rated for ingress protection.
  • Lens is IK 10 rated for protection from external impacts.
  • Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 7 per ASTM D1654-05 scratch test.
  • Complies with FCC Part 15, class A.
  • Complies with EN61000-4-5, surge immunity protection (4kV).
Warranty
  • 5-year warranty on all electronics and housing.
