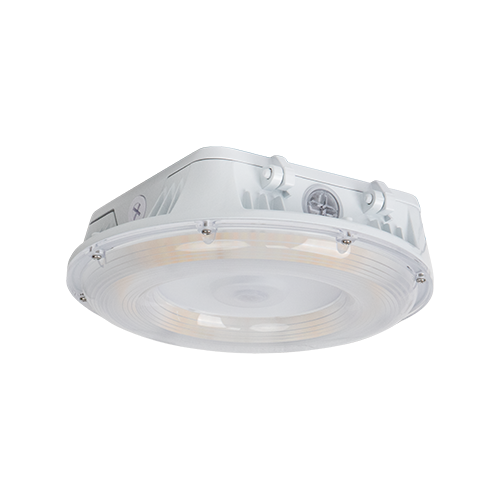

The LED Canopy Luminaire features a premium die-cast aluminum housing with a durable bronze or white powder-coat finish, designed for surface or optional pendant mounting. It features a switchable photocell for added energy control. The polycarbonate lens and selectable CCT (3000K/4000K/5000K) pair with five adjustable lumen outputs delivering 3,171–11,682 lumens. Sensor-ready design supports screw-in controls for advanced motion or daylight operation. With IP65 and IK10 ratings, it’s ideal for wet and rugged environments.
Housing
• Premium powder-coat, die cast aluminum, Bronze or White housing.
Electrical
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
Optical System
• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• Five selectable lumen outputs selectable to provide a range of 3,171 to 11,682 nominal lumens.
Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Beam angle 135°.
• Screw in sensor ready. Sensor and remote control sold separately. Sensors equipped with 5 turn dials for remote free programming. Optional remote control required to change factory sensor settings.
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance <- 0.0023 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 80.
Mounting
• Surface mounting.
• Optional pendant mounting, using ¾” threaded conduit.
Code Compliance
• cULus listed for wet locations.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• IK10 rated for impact protection.
