LED Round High Bay Lumen & Kelvin Field Selectable-120-277V

Model: 07-HBRSR
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

See this product in action – view Case Study

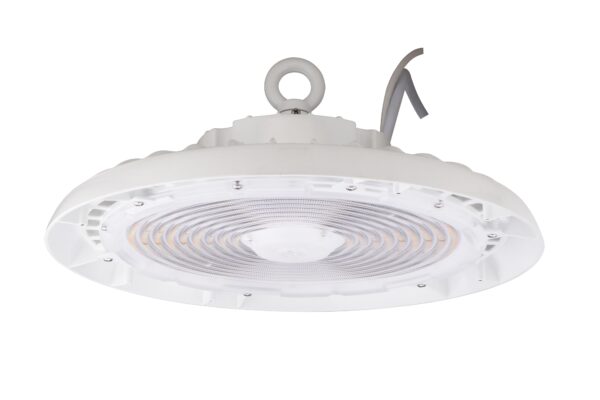

Premium Round (UFO) High Bay with field selectable color temperature and lumen output.  Just 2 SKUs offer lumen output from 16,000 lumens up to 35,000 lumens and 4000K and 5000K CCT.  The 07-HBRSR is offered in 2 housing colors, black and white.  Screw in sensor-ready designs allows for a PIR or microwave sensor (sold separately) to be added in the field with ZERO WIRING!   The premium round high bay is compatible for installations with input voltages 120-277v standard or 277-480V with the use of the available step-down transformer.

  • Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures.
  • Long-life LEDs provide 146,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).
  • LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 of operation.
  • Provides a range of 16,000 to 35,000 nominal lumens.
  • Universal 120-277 AC voltage (50-60Hz) and 6-foot incoming AC power cords are standard.
  • 347-480v achieved with step-down transformer, sold separately
  • 0-10vdc dimming drivers are standard.
  • Watertight, compression-type electrical connectors.
  • Mounting options include suspension from eyebolt (standard), yoke mounting, snap hook, and attachment to electrical conduit.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index (Ra) > 80.
  • Die cast aluminum housing, painted white.
  • Polycarbonate lens.
  • Sensor-ready. Sensor and remote control sold separately. **Remote control required to change factory sensor settings.
  • Easy installation in new construction or retrofit.
Code Compliance
  • cULus listed for wet locations.
  • DLC Premium listed.
  • Complies with FCC Part 15, class A.
  • IP65 rated for ingress protection.
Warranty
  • 5-year warranty on all electronics and housing
33462
Would you like help comparing this to other products?
Yes, connect me with an account manager
How do you want to connect?
Call
Email
  • Inline LED Emergency Driver for Round High Bay
  • Pendant Snap Hook for Round High bays
  • Yoke Mount-Black -for 07-HBRSR Round Highbay
  • Yoke Mount-White -for 07-HBRSR Round Highbay
  • 90 Degree Polycarbonate Reflector for 07-HBRSR-353024L (Copy)
  • 90 Degree Polycarbonate Reflector for 07-HBRSR-221816L
  • 90 Degree Aluminum Reflector for 07-HBRSR-353024L
  • 90 Degree Aluminum Reflector for 07-HBRSR-221816L
  • Step Down Transformer-347-480V Input for 07-HBRSR
  • Screw-In Microwave Sensor for Sensor-Ready Products- 07-HD07VR-MH-B-1
  • Screw-In PIR Sensor for Sensor Ready Products- 07-HD07VR-PH-1
  • Remote Control for High Bay Sensors- 07-HD05R
