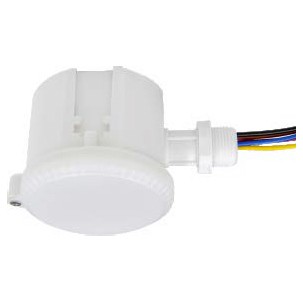

Microwave Motion Sensor for Warehouses

Model: 13-MWAVEDH-DIM10V-MT

MICROWAVE MOTION SENSOR FOR WAREHOUSES

The MWAVEDH sensor is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials, except the higher mounting height 15M Max. The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function. This is perfect for use in some areas that require a light change before complete switch off.

ELECTRICAL SPECIFICATIONS Input • Input Voltages: Universal120 or 277VAC, 60Hz (User selectable with (2) wire jumpers provided) • Input Frequencies: 60Hz ±2% • Input Protection: Provided by Service Panel rated at 20 amps maximum Output • Output Voltages: 120 or 277VAC (60Hz) • Efficiency Rating: 98% at full rated load (line) • Waveform: Sinusoidal (digitally controlled) • Static Voltage: ±5% during battery discharge. 0-100% linear load. • Output Frequencies: 60Hz. ±0.3Hz during emergency cycle • Output Distortion: Less than 3% THD (linear load) • Transfer Time: Less than 1.0 second. • Load Power Factor Range: 0.88 Lead to 0.88 Lag. • Minimum Loading: 0% of rated system capacity. • Output Protection: Circuit breaker. HOUSING Heavy duty steel cabinet is finished in white based-on powder providing scratch and corrosion resistance. MOUTING Designed for mounting to walls by means of keyhole slots provided in the back of the unit housing. BATTERY Battery: Sealed Lead Calcium (10 year life) Battery Voltage: 72VDC for 03-LPS-1150, Runtime: 90-minutes standard- based on battery performance at (25°C). Other runtimes available, consult factory. Battery Protection: Low Voltage Battery Disconnect protects the battery from being severely damaged by deep discharge during prolonged power failures. Reverse Polarity, DC Overload and Short Circuit Protection provided by a DC input breaker and fuse. CHARGER Charger Type: Fully automatic, temperature compensated, dual-mode charger Power Consumption: (charger only) 73W maximum (6.7W in standby) for 03-LPS-1150 model. Recharge Duty Cycle: Meets UL924 requirements Controls: Momentary test switch, AC-ON, Charge-ON and Inverter-ON LED indicator lights Safety Circuitry: AC Lockout prevents battery discharge prior to initial unit power-up. Brownout Protection automatically switches the unit to emergency mode when utility voltage is significantly reduced.
