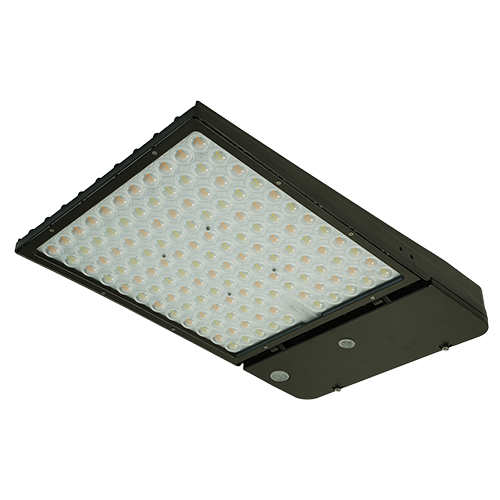

The Distribution Selectable Multi-Purpose Area Light features a durable, die-cast aluminum housing with dark bronze powder-coated finish. It features field-selectable lumen outputs (28,342 – 42,653 lm), CCT (3000K/4000K/5000K), and distribution types (III/IV/V). Mounting options include adjustable arm & slip fitter combo, arm, slip-fitter, yoke, and trunnion. Sensor-ready with optional NEMA photocell receptacle.
HOUSING
• Premium powder-coat, die cast aluminum, Bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Input transient surge protection = 6kV.
• Incoming AC power cord = 6′. Incoming dimming cord = 6′
• Watertight, compression-type electrical connectors.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
OPTICAL SYSTEM
• Polycarbonate lens.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white)
color temperatures.
• 08-MPALDSR-403530L-3CCT Tri-lumen selectable provide a range of 28,342 to
42,653 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen
output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Distribution selectable. Standard optic provides type III / type IV / type V distribution.
Easy to configure with switch.
• Sensor-ready receptacle standard.
• Screw in sensor ready. Remote control required for programming (Sensor and remote
control sold separately).
• Available factory installed NEMA photocell receptacle for 3-pin NEMA devices.
• LED color maintenance < -0.00495 chromaticity shift (Δu’v’) over the initial 6,000
hours of operation.
• Color rendering index > 80.
MOUNTING
• Optional Adjustable Arm Mounting Kit (Arm and Slip-fitter combination).
• Optional Arm Mounting kit.
• Optional Slip-fitter Mounting kit.
• Optional Yoke Mounting kit.
• Optional Trunnion Mounting kit.
NOTE: Mounting hardware sold separately. One must be ordered. Pole tenons and tenon adapters available. See all mounting accessories on specification sheet.
