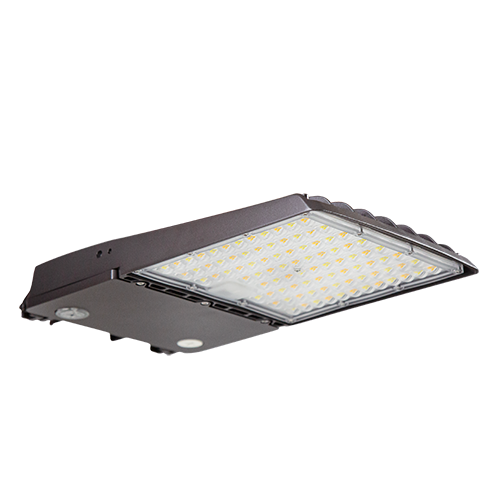

Sensor-Ready Multi-purpose area light offers selectable output from 12,000 to 24,000 lumens. Selectable CCT. Available in T3 or T5 beam types. Select from 5 different mounting options for any application. Multiple control options, including photocell and occupancy sensors.
HOUSING
Premium powder-coat, die cast aluminum, Bronze housing.
ELECTRICAL
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cords.
• Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
• 08-MPALSR-241812L-3CCT provides a range of 12,267 to 25,747 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
• Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
• LED chromaticity based on < 6-step ANSI quadrangles.
• LED color maintenance < 0.0019 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
• Color Rendering Index > 70.
MOUNTING
• Optional Universal Mount (Arm and Slip-fitter combination).
• Optional Adjustable Arm Mounting kit.
• Optional Slip-fitter Mounting kit.
• Optional Yoke Mounting kit.
• Optional Trunnion Mounting kit.
NOTE: Mounting hardware sold separately. One must be ordered. Pole tenons and tenon adapters available. See all mounting accessories on specification sheet.
