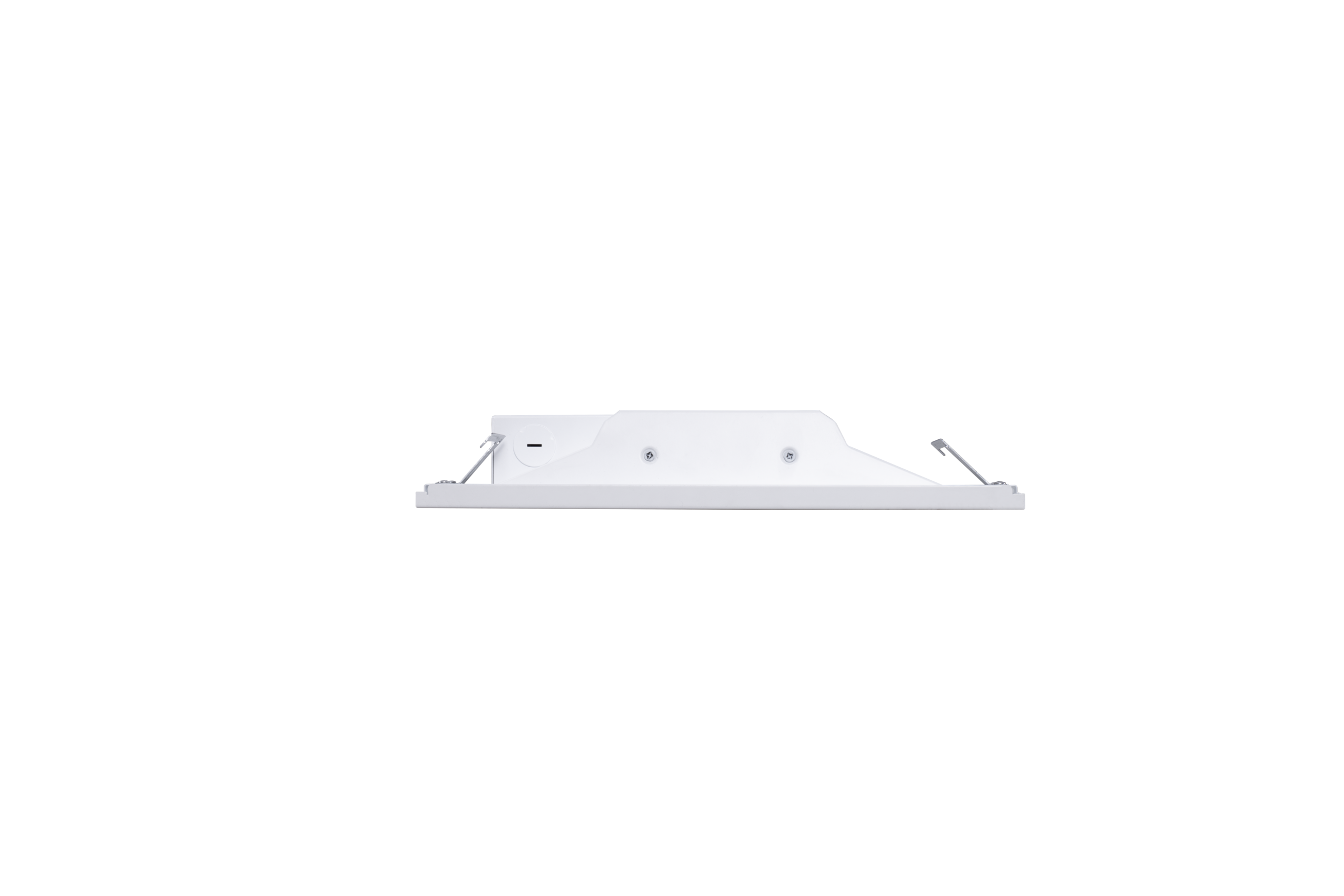

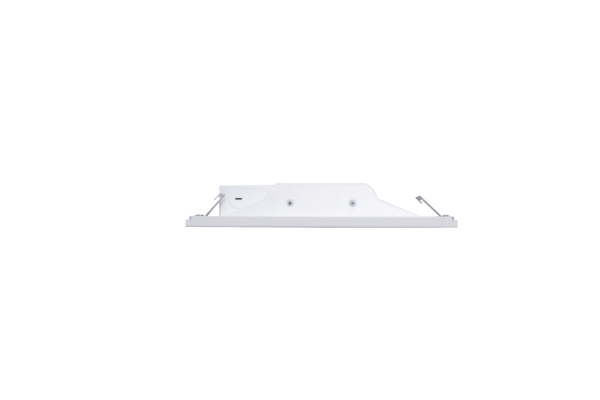

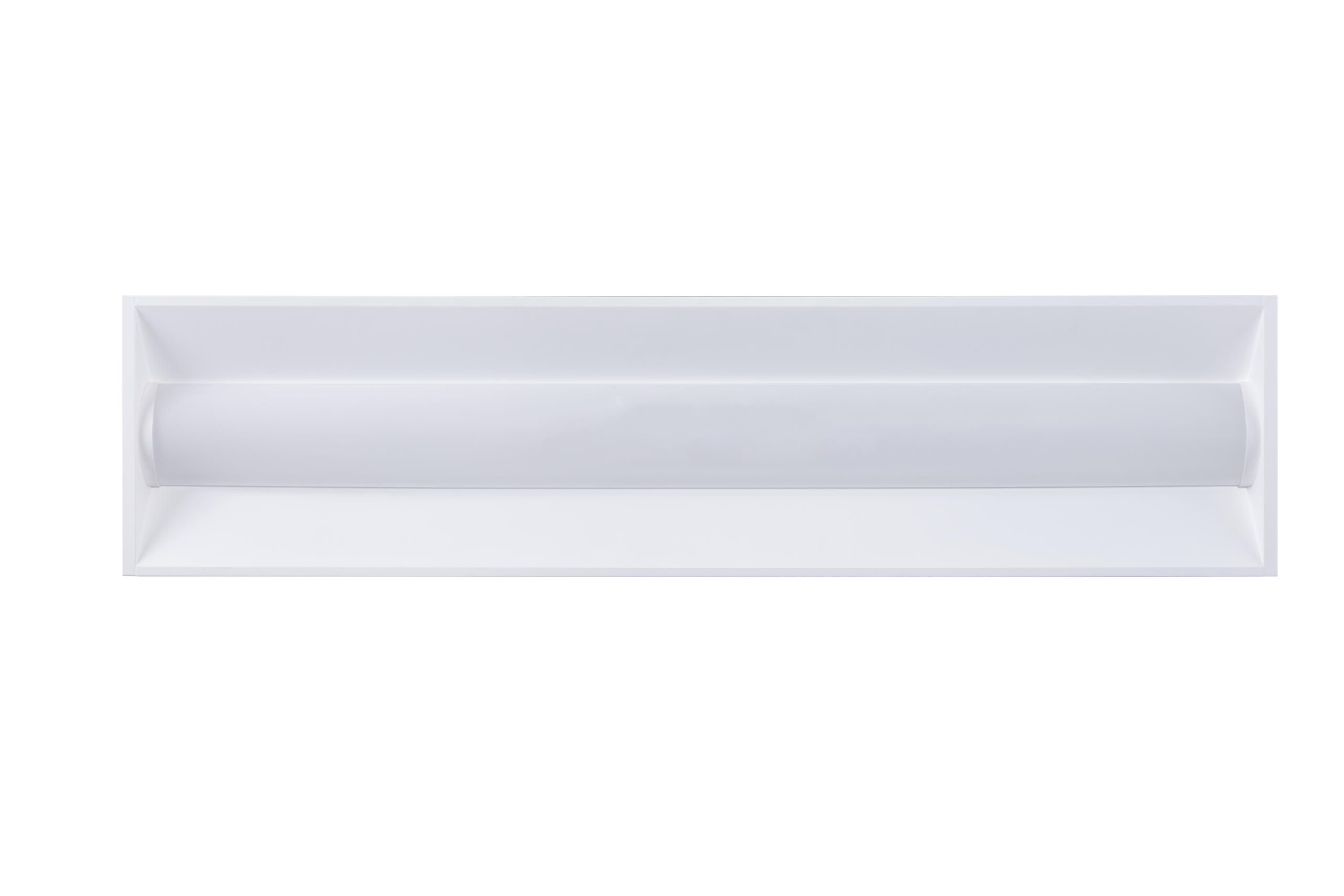

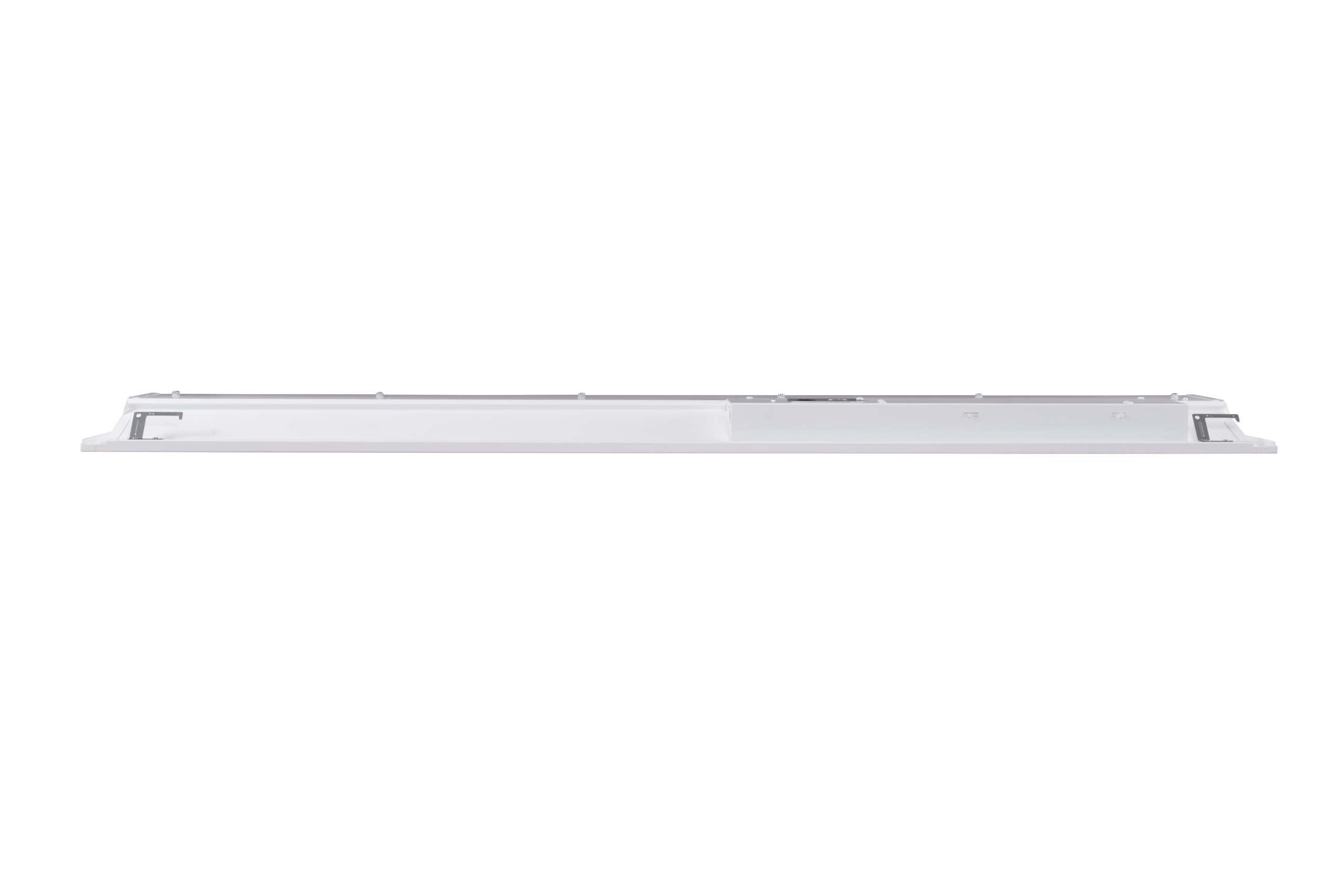

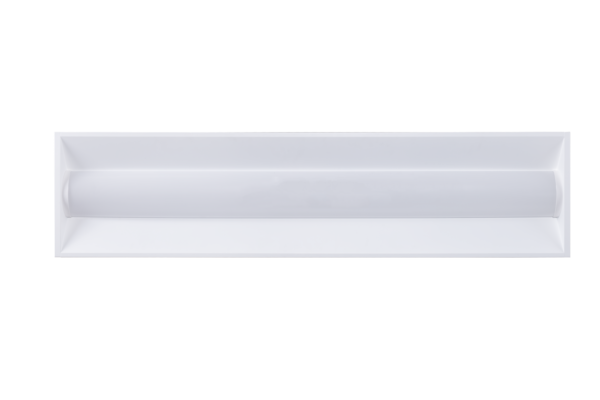

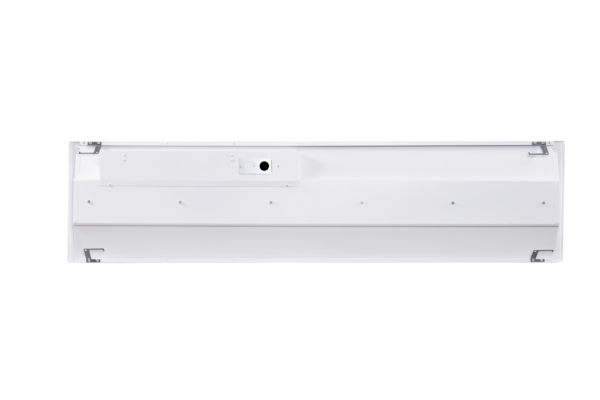

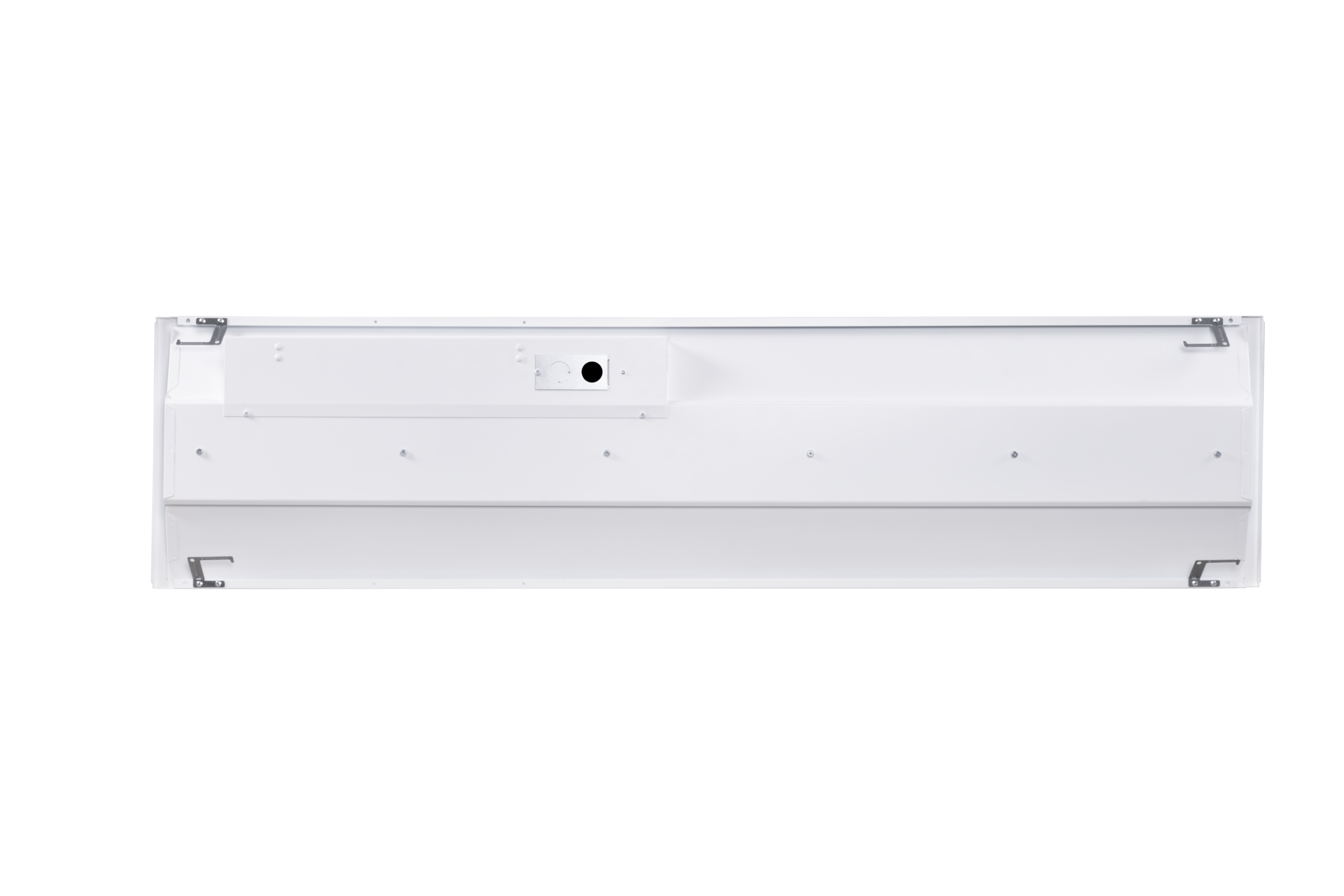

1×4 LED Center Basket – Lumen & Kelvin Selectable

Model: 05-CB14-4L-LKFS
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

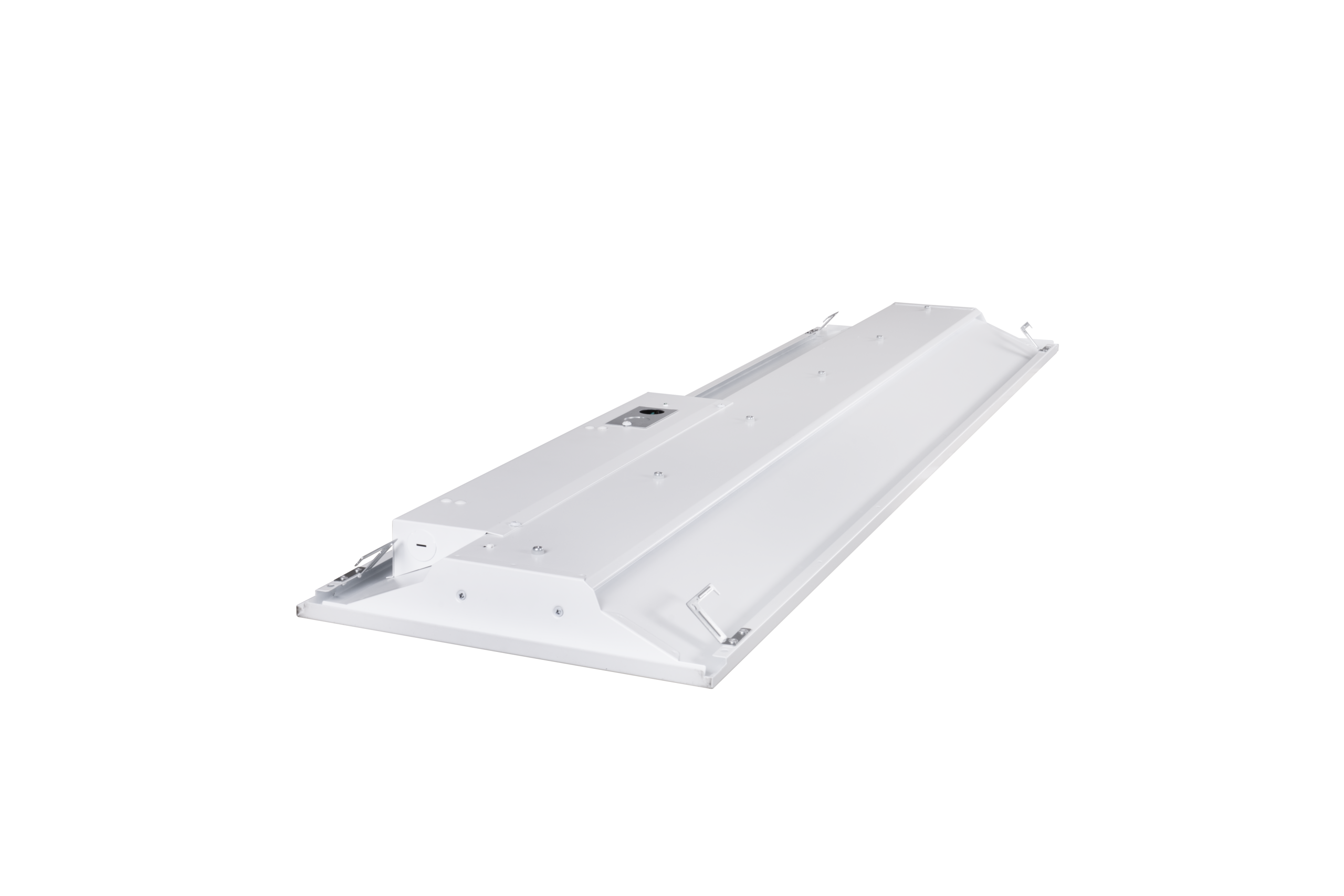

The 05-CB14-4L delivers reliable, uniform illumination in a durable, low-profile design ideal for commercial grid ceilings. Its premium white powder-coated steel housing and frosted polycarbonate lens provide smooth, glare-free light with no visible LED pixilation. Field-selectable color temperatures (3500K, 4000K, 5000K) and adjustable lumen output up to 5,000 lumens offer flexibility for a wide range of applications. Designed for easy installation, the fixture supports recessed grid mounting with optional surface, flange, or cable mounting kits. With universal 120–277V input, 0–10V dimming, and long-life LEDs rated up to 180,000 hours (L70), the CB14 delivers dependable performance and energy efficiency for commercial spaces.

Housing

  • Premium powder-coat, steel, white housing.

Electrical

  • Operating temperature (ambient): -20°C to 50°C (-4°F to 122°F).
  • Universal 120-277V AC voltage (50-60Hz) is standard.
  • 0-10VDC, continuous dimming capability drivers are standard.
  • Type IC rated for insulated ceilings.
  • Inherently protected.
  • Uniform illumination with no visible LED pixilation.
  • Input transient surge protection = 1.0 kV.
  • Power factor > 0.90.
  • Total Harmonic distortion < 20%.

Optical System

  • Frosted polycarbonate lens.
  • Field selectable 3500k(warm white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
  • Selectable output provides 3,309 to 4,345 nominal lumens.
  • Long-life LEDs provide 180,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).
  • LED color maintenance < -0.0007 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • Color rendering index > 80.

Mounting

  • Recessed mounting in grid ceilings is standard.
  • Standard earthquake clips provide secure installation in grid ceilings.
  • Optional Surface Mounting Kits (05-SMKT-14) and Flange Mounting Kits (05-FLANGEKIT14-ET) provide for installation on plaster or other hard ceilings.
  • Optional Cable Mounting Kits (05-PNL-CMK) provide additional security, as well as suspended mounting.

Code Compliance

  • cULus listed for damp locations.
  • UL listed for maximum of 4.12AWG through branch circuit conductor.
  • Complies with FCC part 15, class A.

Warranty

  • 5-year warranty on all electronics and housing.
35189
Would you like help comparing this to other products?
Yes, connect me with an account manager
How do you want to connect?
Call
Email
  • Add to Wishlist
    Purchased before. Love It
    Interested. Want it.

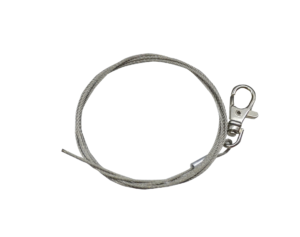

    Set of (4) 1 Meter Cables for Suspending 05-CB14-4L-LKFS
