2×2 LED Back-Lit LED Panel Lumen & Kelvin Field Selectable

Model: 05-PNL2X2-40L-LKFS
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

The 2×2 Back-Lit LED Panel delivers efficient, versatile illumination for commercial spaces with field-selectable lumen output and five selectable color temperatures from 3000K to 6500K. Designed for easy installation in grid ceilings, it features 0–10V dimming, universal 120–277V operation, selectable output up to 4,465 lumens, and efficacy up to 142 lumens per watt. Optional surface, flange, and cable mounting kits provide added installation flexibility.

Housing
  • White power-coated steel housing.
Electrical
  • High ambient operating temperature up to 50°C.
  • Universal 120-277V AC voltage (50-60Hz).
  • 0-10VDC dimming driver.
  • Input transient surge protection = 1 kV.
  • Optional Emergency drivers are available.
  • Type IC-rated.
  • Power Factor > 0.9
  • Total Harmonic Distortion < 20%.
Optical System
  • Efficacy up to 142 lumens per Watt.
  • Field selectable 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures.
  • Selectable output delivers from 2,882 to 4,465 nominal lumens, with 3 settings.
  • Long-life LEDs provide 180,000 hours of operation with at least 70% of initial lumen output (L70), and 54,000 hours with at least 90% of initial lumen output (L90).
  • LED color maintenance <0.0007 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • Plastic lens.
  • Color Rendering Index > 80.
Mounting
  • Recessed mounting in grid ceilings is standard.
  • Standard earthquake clips provide secure installation in grid ceilings.
  • Optional Surface Mounting Kits (05-SMKT-22S) and Flange Mounting Kits (05-FLANGEKIT22-ET) provide for installation on plaster or other hard ceilings.
  • Optional Cable Mounting Kits (05-PNL-CM) provide additional security, as well as suspended mounting.
Code Compliance
  • cULus listed for damp locations and insulated ceilings.
  • Flicker-free per IEEE 1789-2015 (no observable adverse effects of flicker at 100% light output level).
  • Complies with FCC Part 15, Class A.
  • Inherently protected.
  • IP6X rated for ingress protection.
Warranty
  • 5-year warranty on all electronics and housing.
36704
Would you like help comparing this to other products?
Yes, connect me with an account manager
How do you want to connect?
Call
Email

Optional Accessories Sold Separately

  • Add to Wishlist
    Purchased before. Love It
    Interested. Want it.

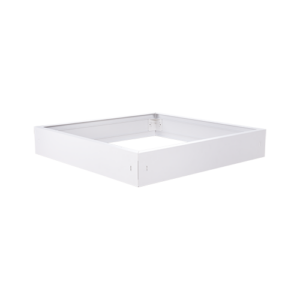

    Surface Mount Kit for 2X2 Back-lit Panel
