Double-Head Rotatable Wall-pack – CCT Selectable/Selectable Output- Sensor Ready

Model: 06-WPRSR-19161310L-3CCT
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

The 06-WPRSR Rotatable Wall Pack is built to make installs faster and jobs more flexible. With independently adjustable light modules, you can dial in the exact light distribution on-siteā€”no need to reposition fixtures or carry multiple SKUs. Field-selectable lumen output and 3CCT let you adapt to different applications with one fixture, saving time and reducing inventory.

Its rugged die-cast aluminum housing and IP65 rating stand up to tough outdoor conditions, while the integrated photocell and sensor-ready design make it easy to meet energy codes and add controls when needed. Ideal for building exteriors, walkways, and security lighting, it delivers reliable performance with less hassle on every install.

HOUSING

  • Premium powder-coat, die cast aluminum, Bronze housing.

ELECTRICAL

  • Operating temperature (ambient): -40Ā°C to 50Ā°C (-40Ā°F to 122Ā°F).
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10V DC dimming drivers are standard.
  • Integrated photocell is standard. Photocell can be enabled or disabled by switch.
  • Input transient surge protection = 6kV.
  • PF > 0.9; THD < 20%.

OPTICAL SYSTEM

  • Polycarbonate lens.
  • Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
  • Four lumens selectable output delivered from 9,888 to 18,713 nominal lumens.
  • Long-life LEDs provide 159,000 hours of operation with at least 70% of initial lumen output (L70), and 48,000 hours with at least 90% of initial lumen output (L90).

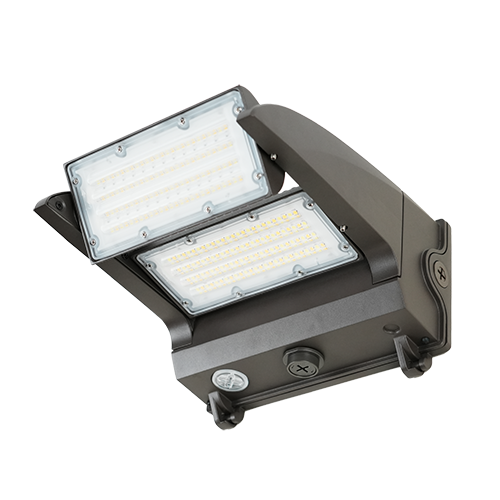

  • Two modules can independently rotate -15Ā° to 210Ā°.
  • Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately. Remote control required to change factory sensor settings.
  • LED chromaticity based on < 6-step ANSI quadrangles.
  • LED color maintenance < 0.0008 chromaticity shift (Ī”uā€™vā€™) over the initial 6,000 hours of operation.
  • Color Rendering Index > 80.

MOUNTING

  • Wall mounting kit.

CODE COMPLIANCE

  • cULus listed for wet locations.
  • DLC premium listed.
  • Complies with FCC Part 15, class A.
  • IP65 rated for ingress protection.
  • IK08 rated for impact protection.

WARRANTY

  • 5 year warranty on all electronics and housing.
