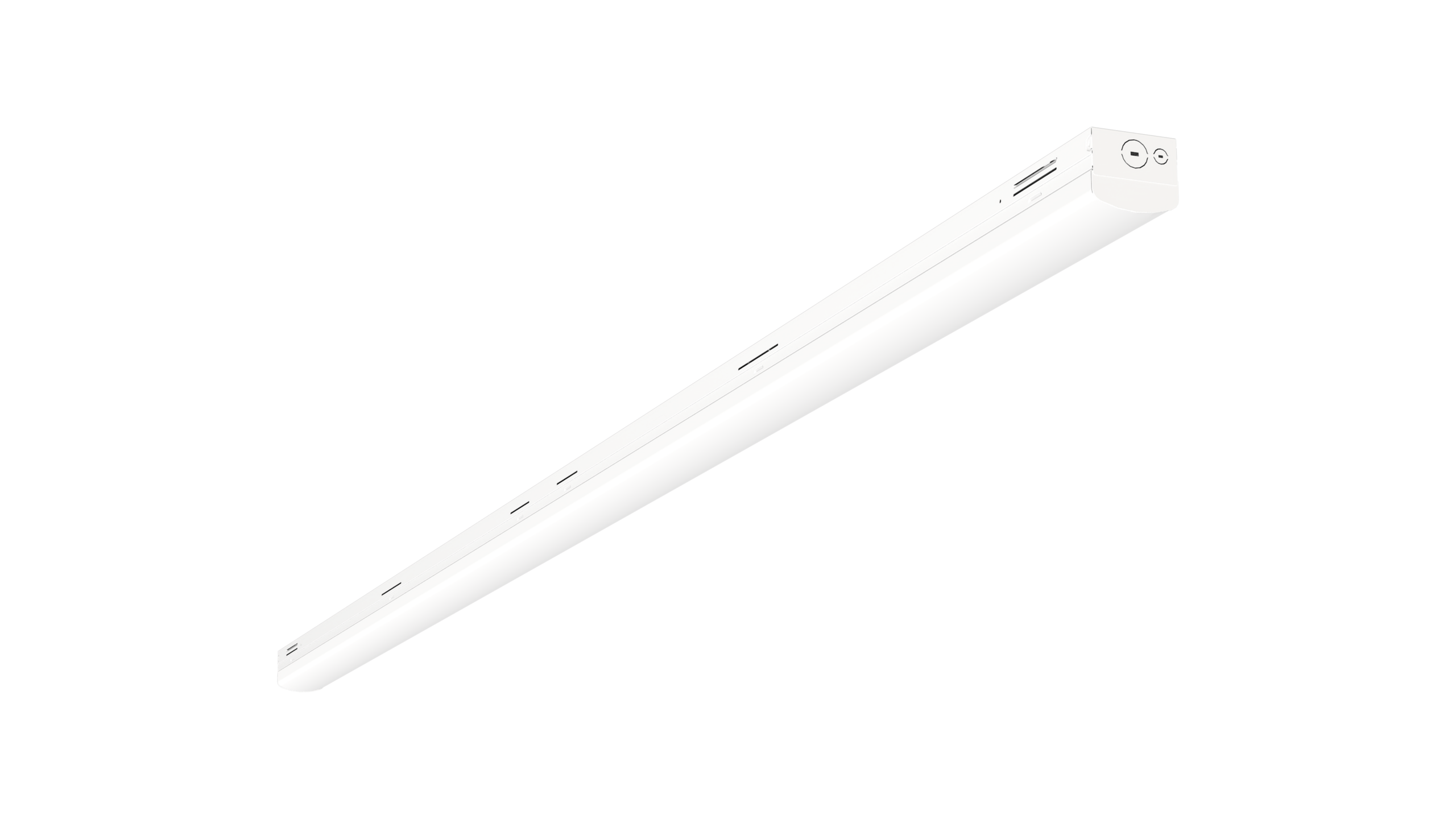

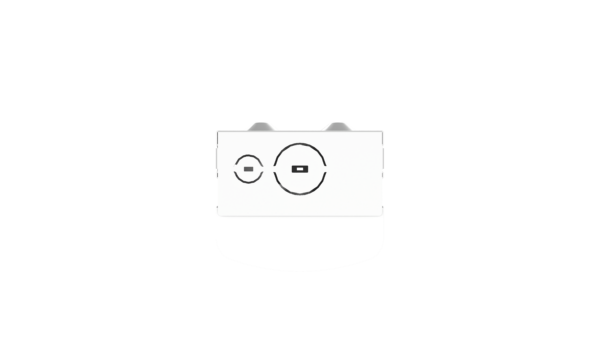

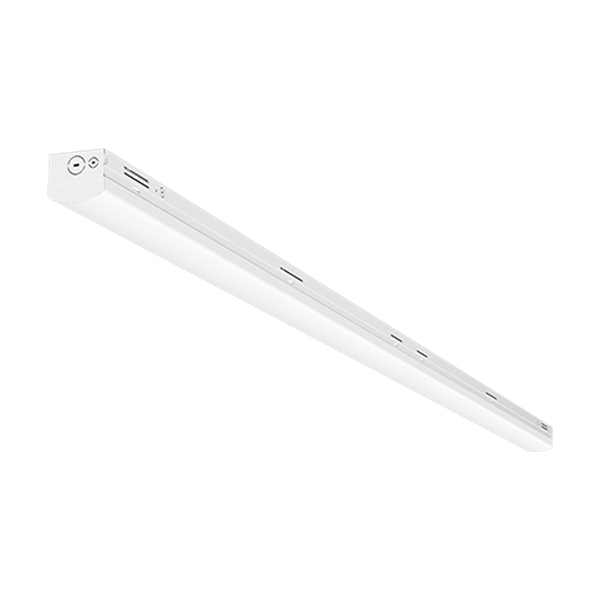

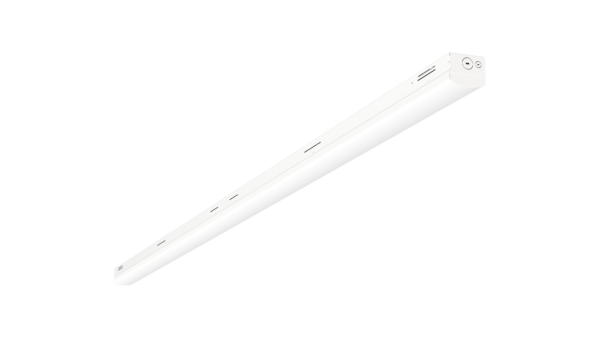

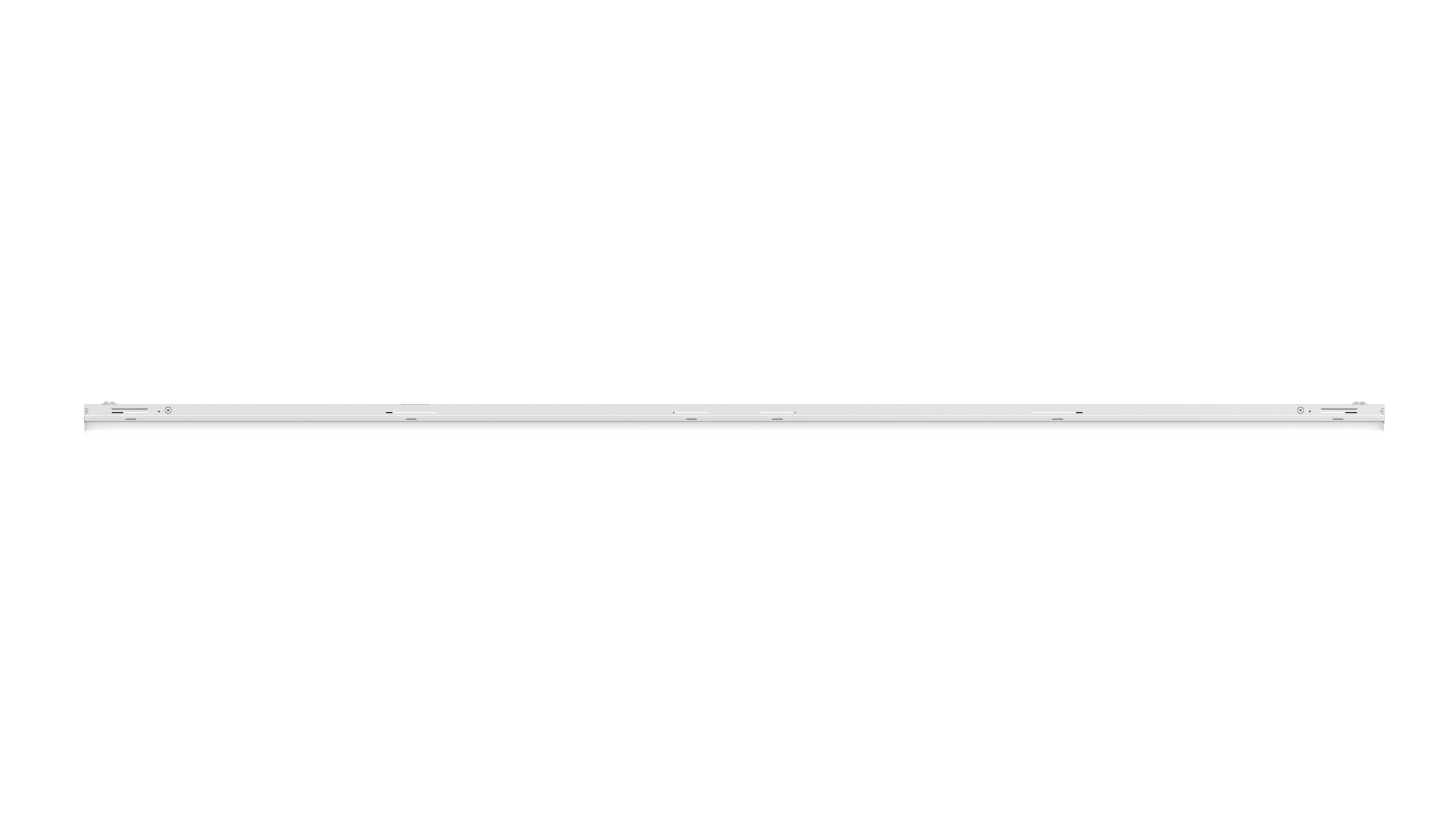

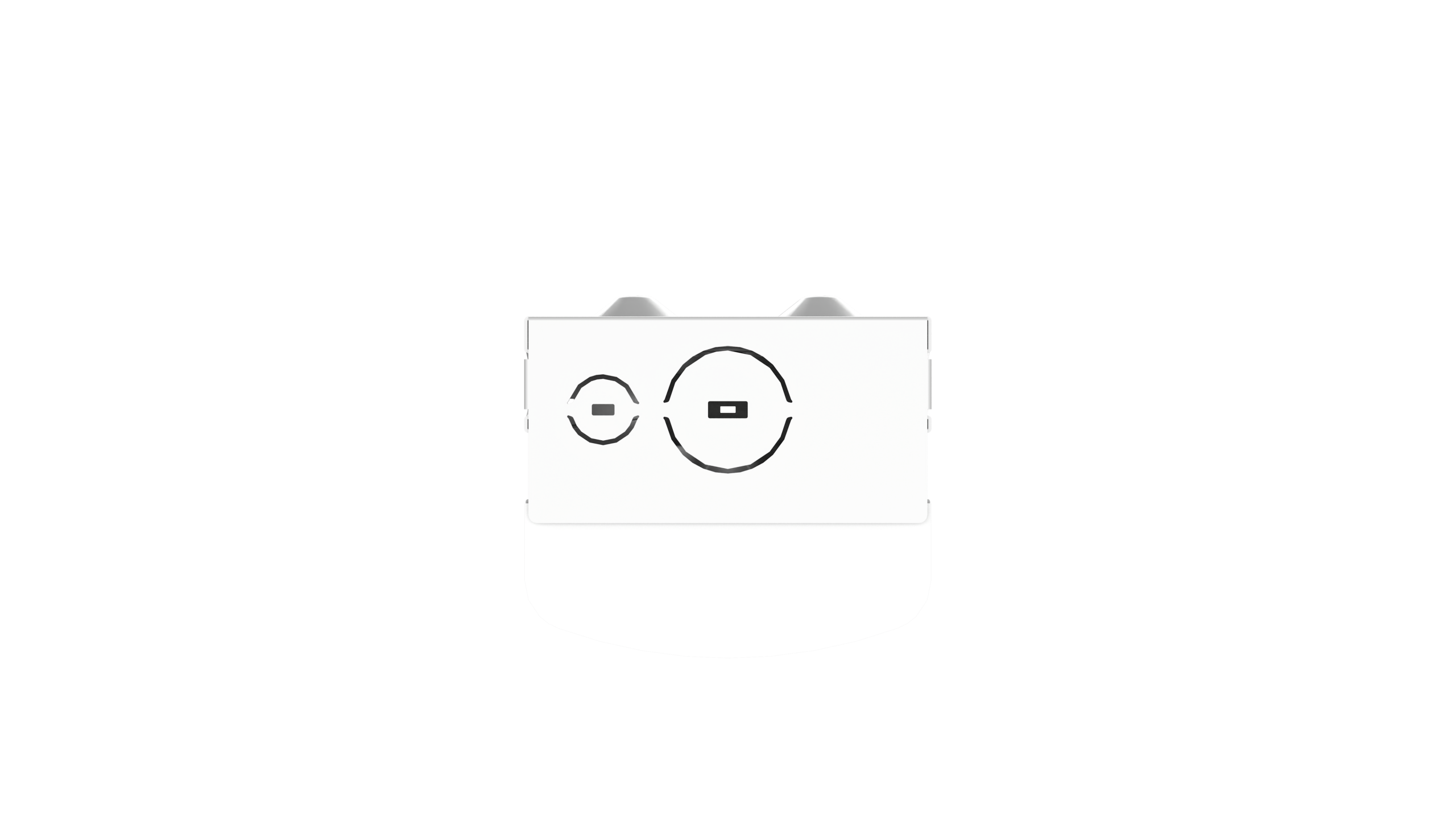

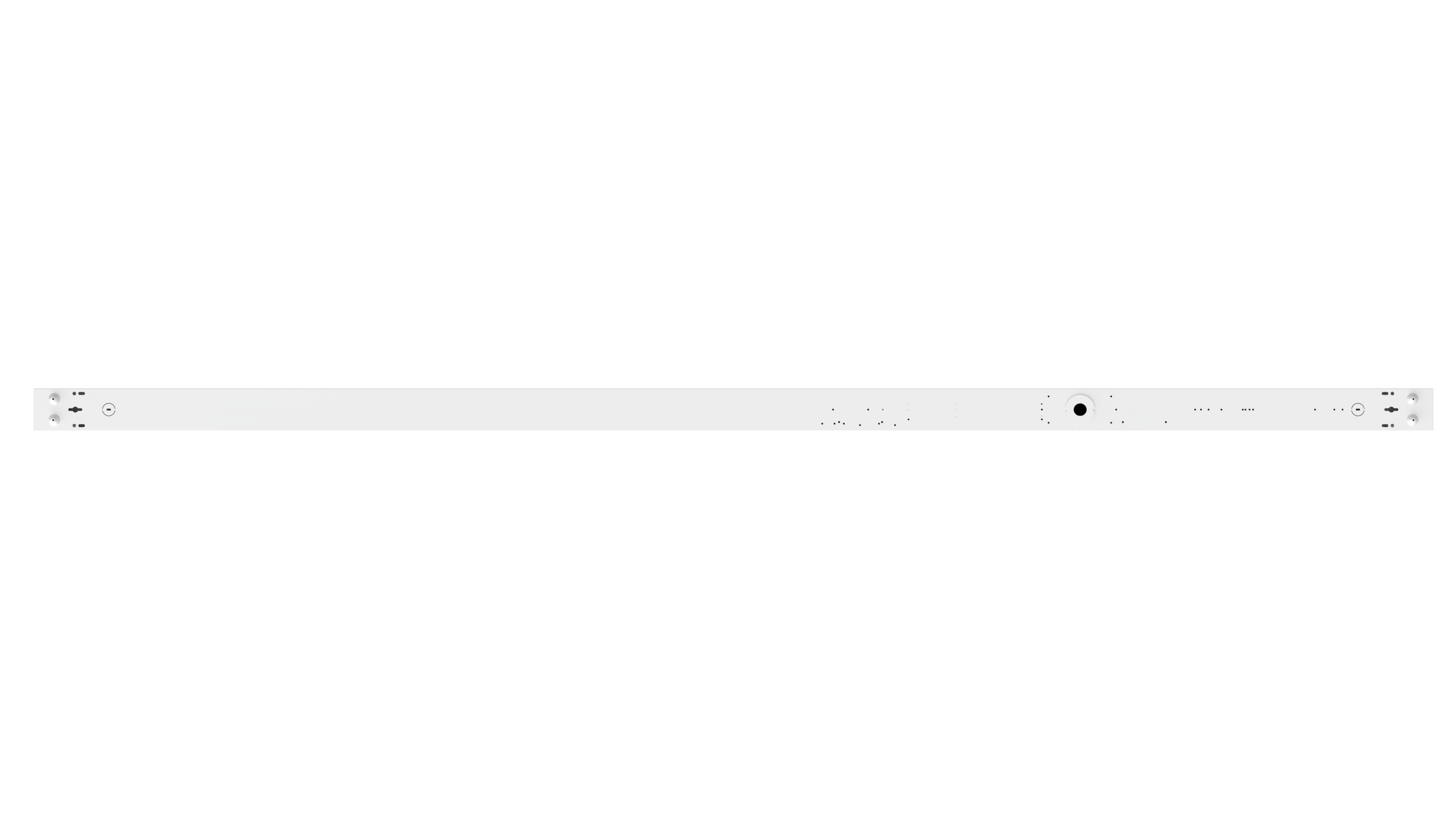

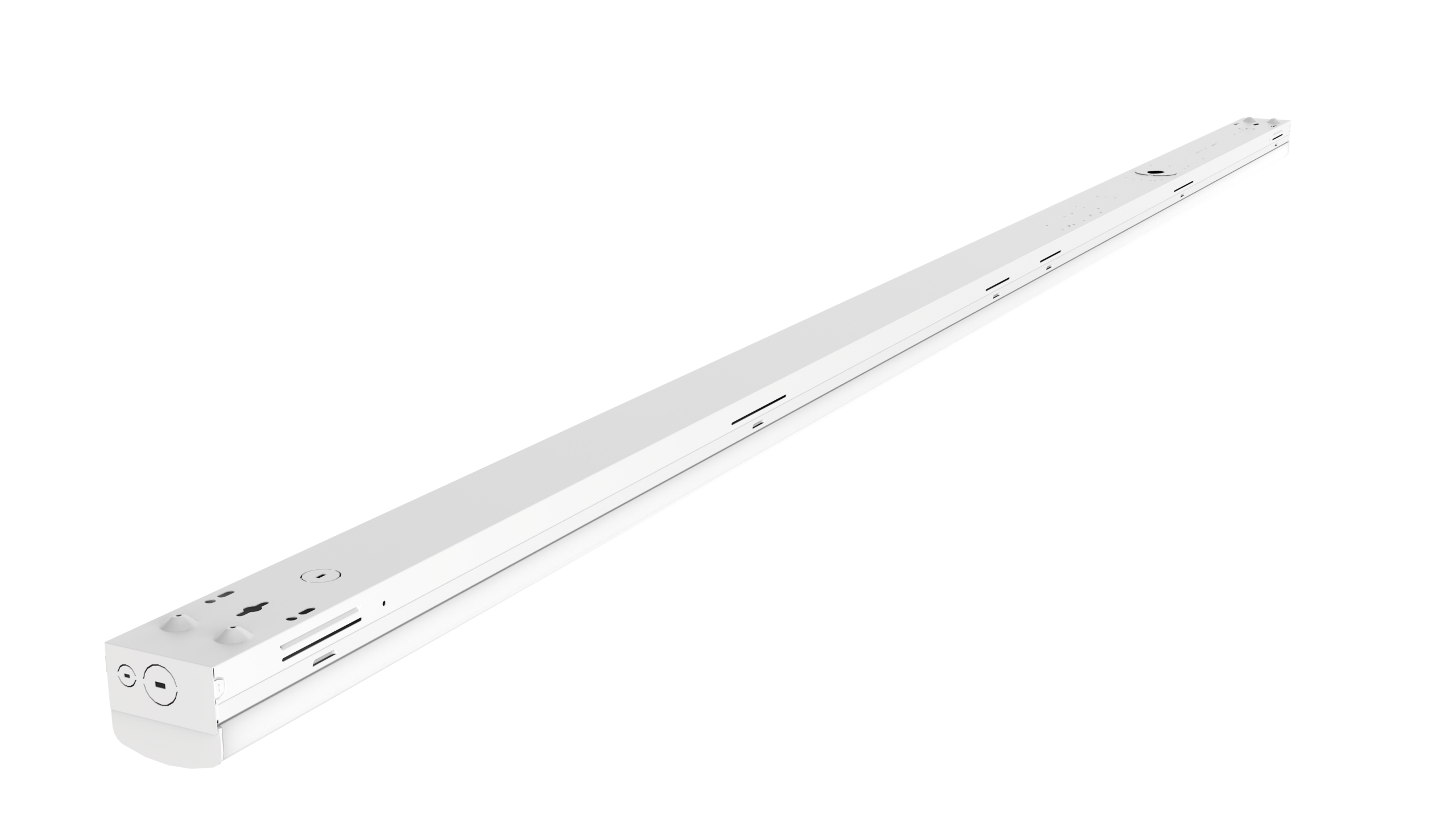

8′ Strip Light – 13,425 to 21,514 Lumens – Sensor-Ready – Lumen and Kelvin Selectable

Model: 05-SLSR8-21171513L-5CCT
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

The 05-SLSR Series LED Strip Light delivers versatile, high-efficiency illumination for commercial and industrial applications. It features four field-selectable lumen settings and five selectable color temperatures from 3000K to 6500K, allowing one fixture to adapt to a wide range of project requirements. With efficacy up to 165 lumens per watt, standard 0-10V dimming, 120-277V operation, and a sensor-ready quick-connect, the SLSR combines performance with installation flexibility. Emergency driver options and multiple mounting accessories are also available.

Housing
  • White powder-coated steel housing.
Electrical
  • Operating temperature (ambient): Up to 50°C (122°F).
  • Universal 120-277V AC voltage (50-60Hz).
  • 0-10VDC dimming driver.
  • Emergency driver option available.
  • Input transient surge protection = 2.5kV.
  • Power Factor > 0.9
  • Total Harmonic Distortion < 20%.
Mounting

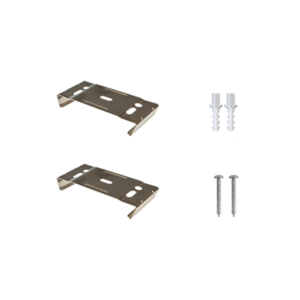

  • Surface Mount Kit.
  • Optional Cable Mount Kit.
  • Chain-mount kit (includes v-hooks, 1-meter-long chain).
Optical System
  • Efficacy up to 165 Lumens per Watt.
  • Field selectable 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures.
  • 05-SLSR8-21171513L-5CCT Selectable output delivers from 13,425 to 21,514 nominal lumens, with 4 settings.
  • Long-life LEDs provide 165,000 hours of operation with at least 70% of initial lumen output (L70), and 50,000 hours with at least 90% of initial lumen output (L90).
  • Sensor-ready quick connect comes standard. Push-in quick connect microwave sensor (sold separately).
  • LED color maintenance < 0.0008 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • PMMA (polymethyl methacrylate) frosted lens.
  • Color Rendering Index > 80.
Code Compliance
  • cULus listed for damp locations.
  • Complies with FCC Part 15, Class A.
Warranty
  • 5-year warranty on all electronics and housing.
