LED Adjustable Wall Pack – Sensor Ready, Lumen & Kelvin Field Selectable

Model: 06-WPASR-3CCT
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

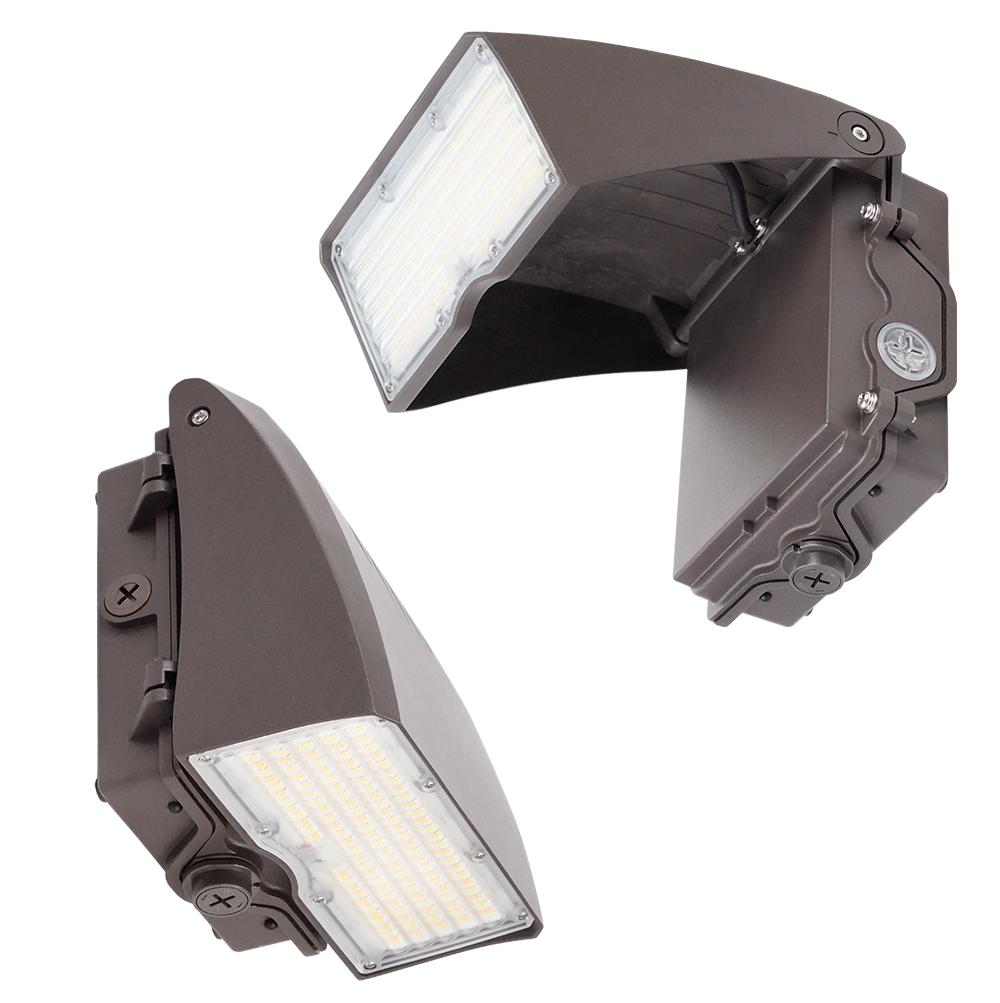

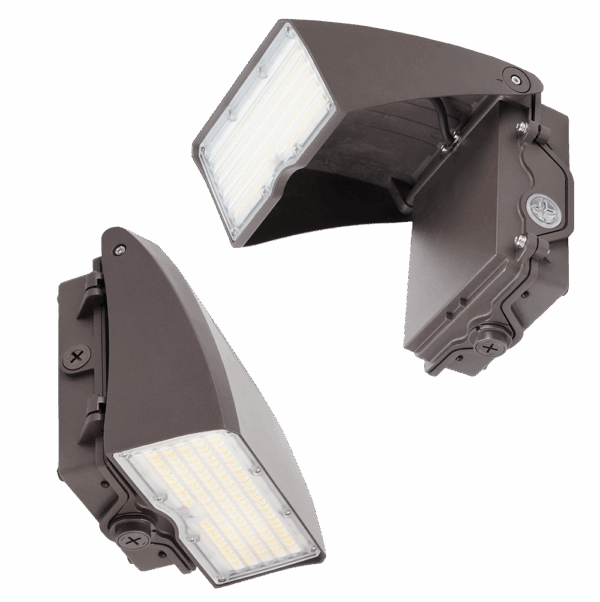

This wall-mounted LED wall pack features a durable, bronze die-cast aluminum housing with an adjustable design (up to 90°) and a polycarbonate lens. It offers field-selectable color temperatures (3000K, 4000K, 5000K) and delivers up to 11,875 lumens, depending on model. The fixture includes an integrated photocell (switchable. It is designed for harsh environments.

Housing

  • Premium powder-coat, die cast aluminum, Bronze housing.

Electrical

  •  Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10V DC dimming drivers are standard.
  • Integrated photocell is standard. Photocell can be enabled or disabled by switch.
  • Input transient surge protection = 6kV.
  • Power factor > 0.90.
  • Total Harmonic distortion < 20%.

Optical System

  • Polycarbonate lens.
  • Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
  • 06-WPASR-6543L-3CCT provides a range of 2,739 to 6,002 nominal lumens.
  • 06-WPASR-121086L-3CCT provides a range of 6,402 to 11,875 nominal lumens.
  • Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).

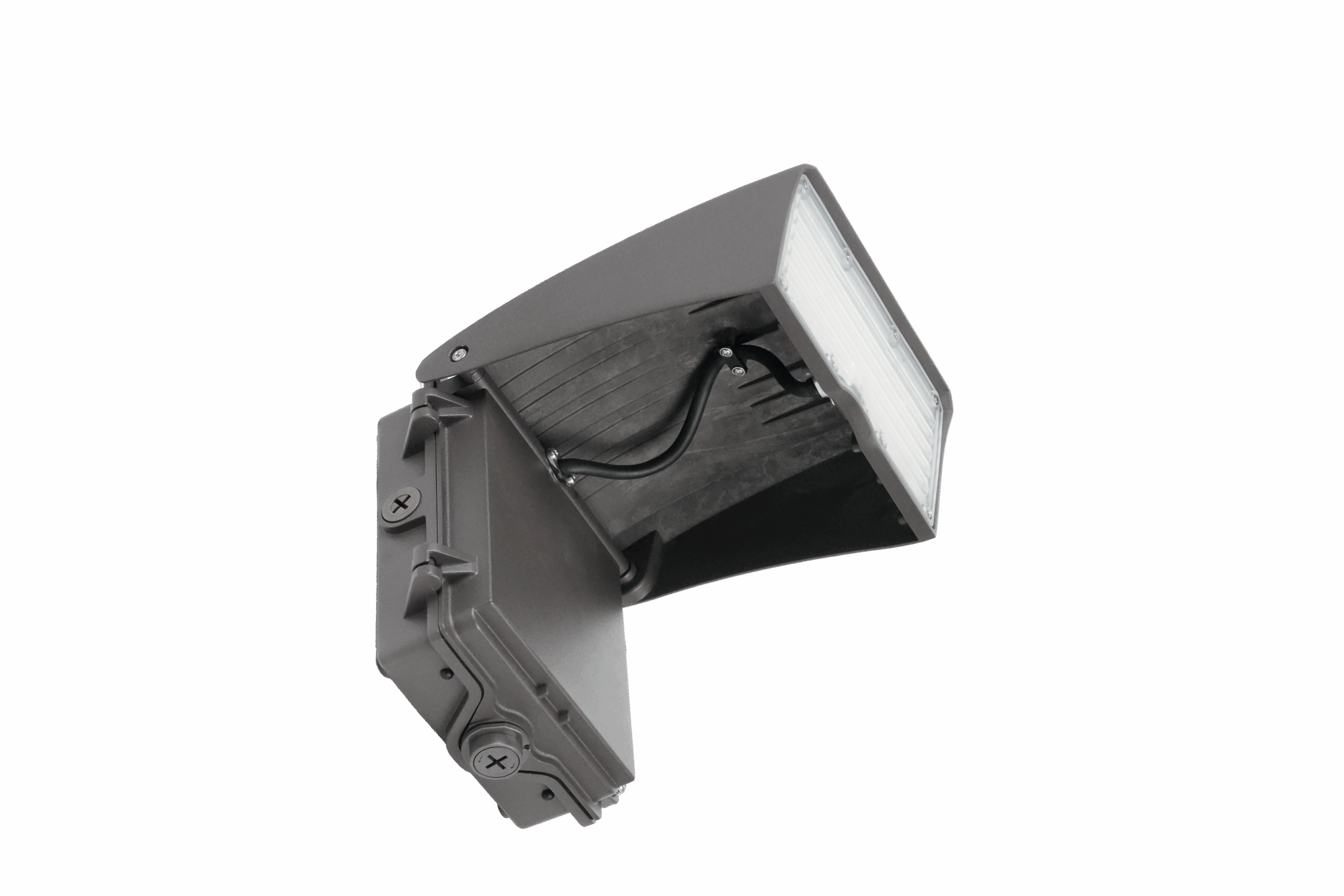

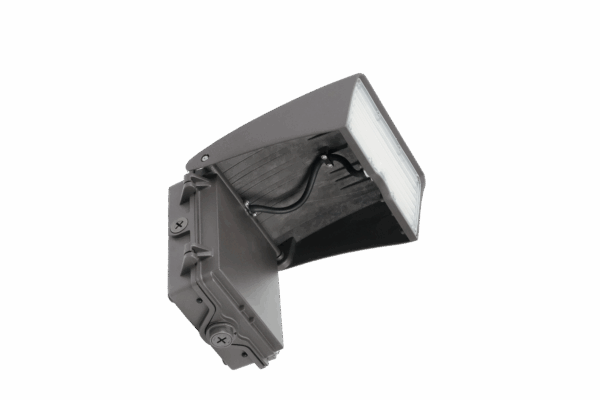

  • Adjustable housing up to 90°.
  • Screw in sensor ready. Occupancy sensor and remote control sold separately. Remote control required to change factory sensor settings.
  • LED chromaticity based on < 6-step ANSI quadrangles.
  • LED color maintenance < -0.0031 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • Color Rendering Index > 80.

Mounting

  • Wall mounting kit.

Code Compliance

  • cULus listed for wet locations.
  • Complies with FCC Part 15, class A.
  • IP65 rated for ingress protection.
  • IK08 rated for impact protection.

Warranty

  • 5-year warranty of all electronics and housing.
33791
Would you like help comparing this to other products?
Yes, connect me with an account manager
How do you want to connect?
Call
Email
  • Screw-In PIR Sensor for Sensor-Ready Products- 25-HD07VR-PHF-1
  • Screw-In Microwave Sensor for Sensor-Ready Products- 25-HD07VR-MHF-1
  • Remote Control for High Bay Sensors- 07-HD05R
