LED High Lumen Linear High Bay – 78,000 Lumens – UL Listed – Dimmable – 4K/5K – 120-277V
LED High Lumen Linear High Bay – 78,000 Lumens – UL Listed – Dimmable – 4K/5K – 120-277V

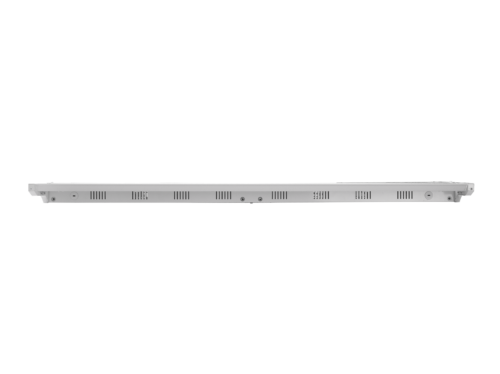

LED HIGH LUMEN LINEAR HIGH BAY
The LED High Lumen Linear High Bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the HBLE provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HIB high bays.FEATURES
▪Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
▪Long life LEDs provide 130 ,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90)
▪78,000 nominal lumens.
▪500 nominal watts.
▪LED chromaticity based on 7 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v ’) over the initial 6,000 hours of operation.
▪Universal 120 277 AC voltage (50 60Hz) is standard. Optional 347 480V available.
▪0 10vdc dimming drivers are standard.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index > 80.
▪Painted steel housing and PMMA (polymethyl methacrylate) frosted lenses are standard.
▪Chain mount kits (includes v hooks and ⅛” thick, 1 meter long chain) are standard.
▪Optional wire guards.
▪Easy installation in new construction or retrofit.
*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
MOUNTING OPTIONS
▪Chain mounting with V hooks is standard.
▪Optional mounting means include surface mounting and cable mounting.*
*See Accessories, page 2 of spec sheet.
WARRANTY/LISTING
▪cULus listed for damp locations in ambient temperatures from 2020°C to 50 50°C ( 44°F to 122 122°F).*
▪Complies with FCC Part 15, class A.
▪Complies with IEEE C.62.41 1991, input transient protection (2.0kV).
▪5 year warranty of all electronics and housing
LED HIGH LUMEN LINEAR HIGH BAY
The LED High Lumen Linear High Bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the HBLE provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HIB high bays.FEATURES
▪Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
▪Long life LEDs provide 130 ,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90)
▪78,000 nominal lumens.
▪500 nominal watts.
▪LED chromaticity based on 7 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v ’) over the initial 6,000 hours of operation.
▪Universal 120 277 AC voltage (50 60Hz) is standard. Optional 347 480V available.
▪0 10vdc dimming drivers are standard.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index > 80.
▪Painted steel housing and PMMA (polymethyl methacrylate) frosted lenses are standard.
▪Chain mount kits (includes v hooks and ⅛” thick, 1 meter long chain) are standard.
▪Optional wire guards.
▪Easy installation in new construction or retrofit.
*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
MOUNTING OPTIONS
▪Chain mounting with V hooks is standard.
▪Optional mounting means include surface mounting and cable mounting.*
*See Accessories, page 2 of spec sheet.
WARRANTY/LISTING
▪cULus listed for damp locations in ambient temperatures from 2020°C to 50 50°C ( 44°F to 122 122°F).*
▪Complies with FCC Part 15, class A.
▪Complies with IEEE C.62.41 1991, input transient protection (2.0kV).
▪5 year warranty of all electronics and housing
