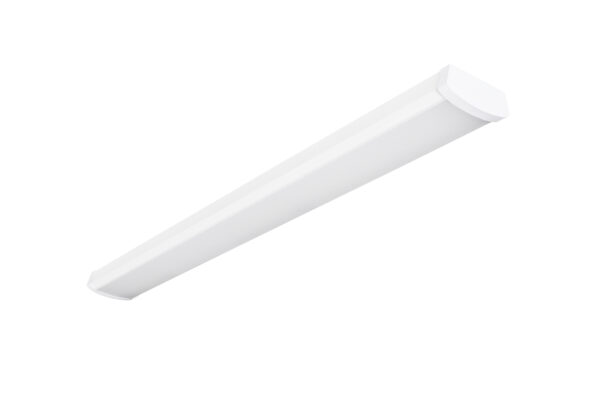

LED Lumen and Kelvin Field Selectable Wrap Light – Economy
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and with at least 90% of initial lumen output (L90)**
• Selectable lumen outputs range from 4,000, 5000 to 6,000 nominal lumens.*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and polycarbonate lens.
• Easy installation in new construction or retrofit applications.
**L70 hours are IES TM-21-11 calculated hours.
• cULus listed for damp locations in ambient temperatures from -25°C to 50°C (-13°F to 122°F)
• Complies with FCC Part 15, class A
• Complies with IEEE C.62.41-2002, Class A input transient surge protection (1.0kV)
• Flicker-free per IEEE 1789-2015(no observable adverse effects of flicker at 100% light output level)
• 5-year warranty of all electronics and housing
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and with at least 90% of initial lumen output (L90)**
• Selectable lumen outputs range from 4,000, 5000 to 6,000 nominal lumens.*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and polycarbonate lens.
• Easy installation in new construction or retrofit applications.
**L70 hours are IES TM-21-11 calculated hours.
• cULus listed for damp locations in ambient temperatures from -25°C to 50°C (-13°F to 122°F)
• Complies with FCC Part 15, class A
• Complies with IEEE C.62.41-2002, Class A input transient surge protection (1.0kV)
• Flicker-free per IEEE 1789-2015(no observable adverse effects of flicker at 100% light output level)
• 5-year warranty of all electronics and housing
