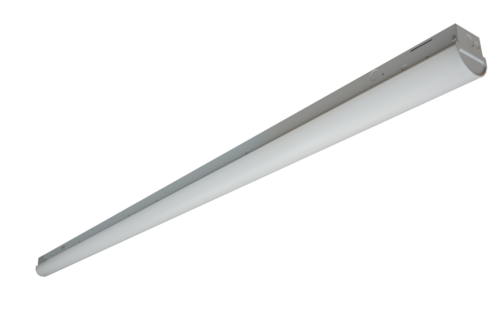

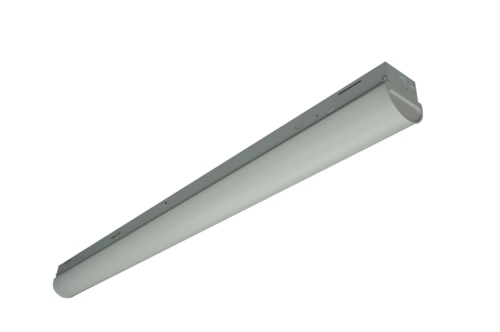

Premium LED Strip Light available in 4-ft or 8-ft. Lumen selectable and Kelvin selectable by the installer in the field to meet project specification.
Housing
Steel housing and PMMA lens.
Mounting
Easy installation in new construction or retrofit.
Electrical
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming drivers are standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Optical System
Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90).**
LED chromaticity based on < 4-step ANSI quadrangles.
LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
SL-4FT-5L-LKFS provides a range of 3,700 to 5,200 nominal lumens and 138 to 152 lumens per watt (LPW).
SL-8FT-10L-LKFS provides a range of 7,100 to 10,100 nominal lumens and 132 to 149 lumens per watt (LPW).
Color rendering index > 80.
Code Compliance
cULus approved for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
Complies with FCC Part 15, Class A.
Complies with IEEE C.62.41-1991, Class A input transient surge protection (1.0kV).
