LED Traditional Wall Pack – Sensor Ready, 277-480V – Lumen & Kelvin Field Selectable

Model: 06-WPTSR-181512L-3CCT-UNC
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

This wall-mounted LED wall pack features a durable, bronze die-cast aluminum housing and a prismatic glass lens. It offers field-selectable color temperatures (3000K, 4000K, 5000K) with 277-480 AC voltage. It is designed for harsh conditions and includes a switchable integrated photocell. Its long-lasting LEDs providing 204,000 hours of operation with at least 70% of initial lumen output. The fixture is sensor-ready (sensor sold separately).

Housing

  • Bronze powder-coated, die-cast aluminum housing.

Electrical

  • Operating temperature (ambient): -40°C to 55°C (-40°F to 131°F).
  • 277-480 AC (50-60Hz).
  • 0-10VDC dimming driver.
  • Integrated photocell is standard. Photocell can be enabled or disabled by switch.
  • Input transient surge protection: 6kV.
  • Power factor > 0.9.
  • Total harmonic distortion (THD) < 20%.

Optical System

  • Efficacy up to 160 Lumens per Watt.
  • Field selectable 3000K, 4000K, and 5000K color temperatures.
  • Selectable output delivers from 11,633 to 17,797 nominal lumens, with 3 settings.
  • Long-life LEDs provide 204,000 hours of operation with at least 70% of initial lumen output (L70), and 61,000 hours with at least 90% of initial lumen output (L90).
  • Screw in sensor ready. Occupancy sensor and remote control sold separately. Remote control required to change factory sensor settings.
  • LED color maintenance < -0.0008 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • Prismatic Glass lens.
  • Color Rendering Index (CRI) > 80.

Mounting

  • Surface mounting kit.

Code Compliance

  • cULus listed for wet locations.
  • Complies with FCC Part 15, Class A.
  • IP65 rated for ingress protection.
  • IK07 rated for impact protection.

Warranty

  • 5-year warranty of all electronics and housing.
36963
Would you like help comparing this to other products?
Yes, connect me with an account manager
How do you want to connect?
Call
Email

Optional Accessories Sold Separately

  • Add to Wishlist
    Purchased before. Love It
    Interested. Want it.

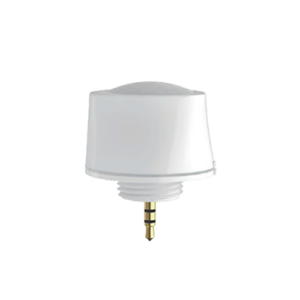

    High-Bay Passive Infrared Sensor
