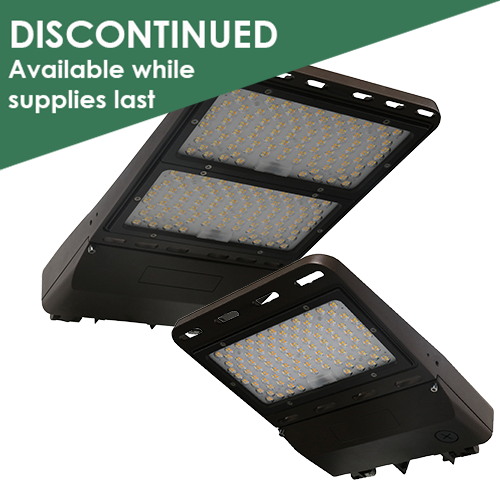

Lumen & Kelvin Selectable Multi-Purpose Area Light Pro

/5
0 review

Lumen & Kelvin Selectable Multi-Purpose Area Light Pro

0.0/5
0 reviews
Model: 08-MPALPRO-LKFS
Light Distribution Type: T3 = Type III, T5 = Type V
Lumens: 24L = 24,000/20,000/14,000 Lumens, 40L = 40,000/34,000/29,000 Lumens
Mounting Bracket: MPAL-ARM = Arm Mount, MPAL-ARM-A = Arm Mount Adjustable, MPAL-SF = Slip fitter Mount, MPAL-TM = Trunnion Mount, MPAL-YM = Yoke Mount
Receptacles: Blank = No Receptacle, P = 3-pin NEMA photocell receptacle (JL-205C23-IP65)
Add to Quote

▪ Field selectable 3000k (warm white), 4000k (neutral white),
and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 162,000 hours of operation with at least 70%of
initial lumen output (L 70), and 49,000 hours with at least 90% of initial
lumen output (L 90).**
▪ LED chromaticity based on < 6-step ANSI quadrangles.
▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over t he
initial 6,000 hours of operation.
▪ Provides a range of 14,000 to 40,000 nominal lumens.*
▪ IES roadway distributions include types III & V .
▪ Universal 120-277V (50/60Hz) or 277-480V (50/60Hz) AC voltage
with 6-foot incoming power cords.
▪ 0-10vdc dimming drivers are standard.

▪ Watertight, compression-type electrical connectors.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index (Ra) > 80.
▪ Optional NEMA photocell receptacles & photocells.
▪ Wall mount brackets and tenon adapters available.
▪ Die cast aluminum housing with dark bronze powder coat finish.
▪ Polycarbonate lens.
▪ Easy installation in new construction or retrofit.
** L70 hours are IES TM-21-11 calculated hours

• cULus listed for wet locations in ambient temperatures from
-40°C to 50°C (-40°F to 122°F).
• Rated for 3G vibration.
• Lenses are rated IK08.
• Input transient surge protection (6kV).
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• 5-Year Warranty of all electronics and housing.
