Multi-Purpose Area Light 15,381-26,687 Lumens-Lumen & Kelvin & Distribution Selectable

Rated 0 out of 5

Model: 08-MPALDSR-242115L-3CCT

View Spec Sheet

Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980

Call for pricing now

Instagram

This field is for validation purposes and should be left unchanged.

Name(Required)

Email(Required)

Phone(Required)

This field is hidden when viewing the form

Division

This field is hidden when viewing the form

Form Name

This field is hidden when viewing the form

Product URL

CAPTCHA

Build an online quote instead

Our lighting professional will call you to provide pricing.

Photocell Option

Input Voltage

Clear

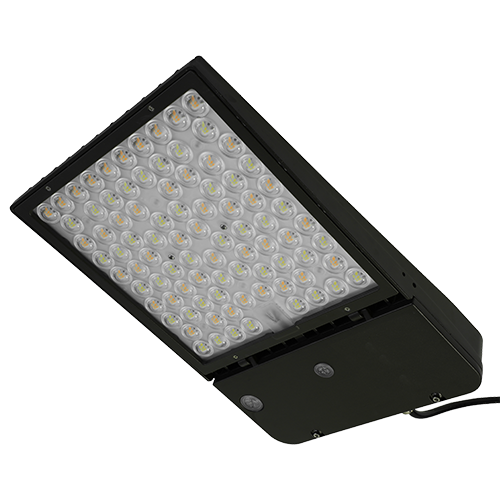

The Distribution Selectable Multi-Purpose Area Light features a durable, die-cast aluminum housing with dark bronze powder-coated finish. It features field-selectable lumen outputs (15,381–26,687 lm), CCT (3000K/4000K/5000K), two input voltage options (120-277V/277-480V), and distribution types (III/IV/V). Mounting options include adjustable arm & slip-fitter combo, arm, slip-fitter, yoke, and trunnion. Sensor-ready with optional NEMA photocell receptacle.

HOUSING

• Dark bronze powder-coat, die cast aluminum housing.

ELECTRICAL

• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F). • Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cord. • 0-10V DC dimming drivers are standard. • Input transient surge protection = 6kV. • Watertight, compression-type electrical connectors. • Power Factor > 0.90. • Total Harmonic Distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens. • Field selectable 3000K , 4000K, and 5000K color temperatures. • 08-MPALDSR-242115L-3CCT selectable output delivers from 15,381 to 26,687 nominal lumens, with 3 settings. • 08-MPALDSR-242115L-3CCT-UNC selectable output delivers from 16,433 to 28,178 nominal lumens, with 3 settings. • Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90). • Distribution selectable with switch. Standard optic provides Type III / Type IV / Type V distribution. • Sensor-ready receptacle comes standard. Screw-in sensor and remote control sold separately. • Available factory installed NEMA photocell receptacle for 3-pin NEMA devices. • LED color maintenance <-0.00495 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation. • Color Rendering Index > 80.

MOUNTING

• Optional Arm A Mounting Kit (Arm and Slip-fitter combo).

• Optional Adjustable Arm Mounting kit.

• Optional Slip-fitter Mounting kit.

• Optional Yoke Mounting kit.

• Optional Trunnion Mounting kit.

NOTE: Mounting hardware sold separately. One must be ordered. Pole tenons and tenon adapters available. See all mounting accessories on specification sheet.
