Multi-Purpose Area Luminaire 8,421 to 15,775 Lumens-Lumen & Kelvin Selectable

Model: 08-MPAL-16129L-3CCT
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

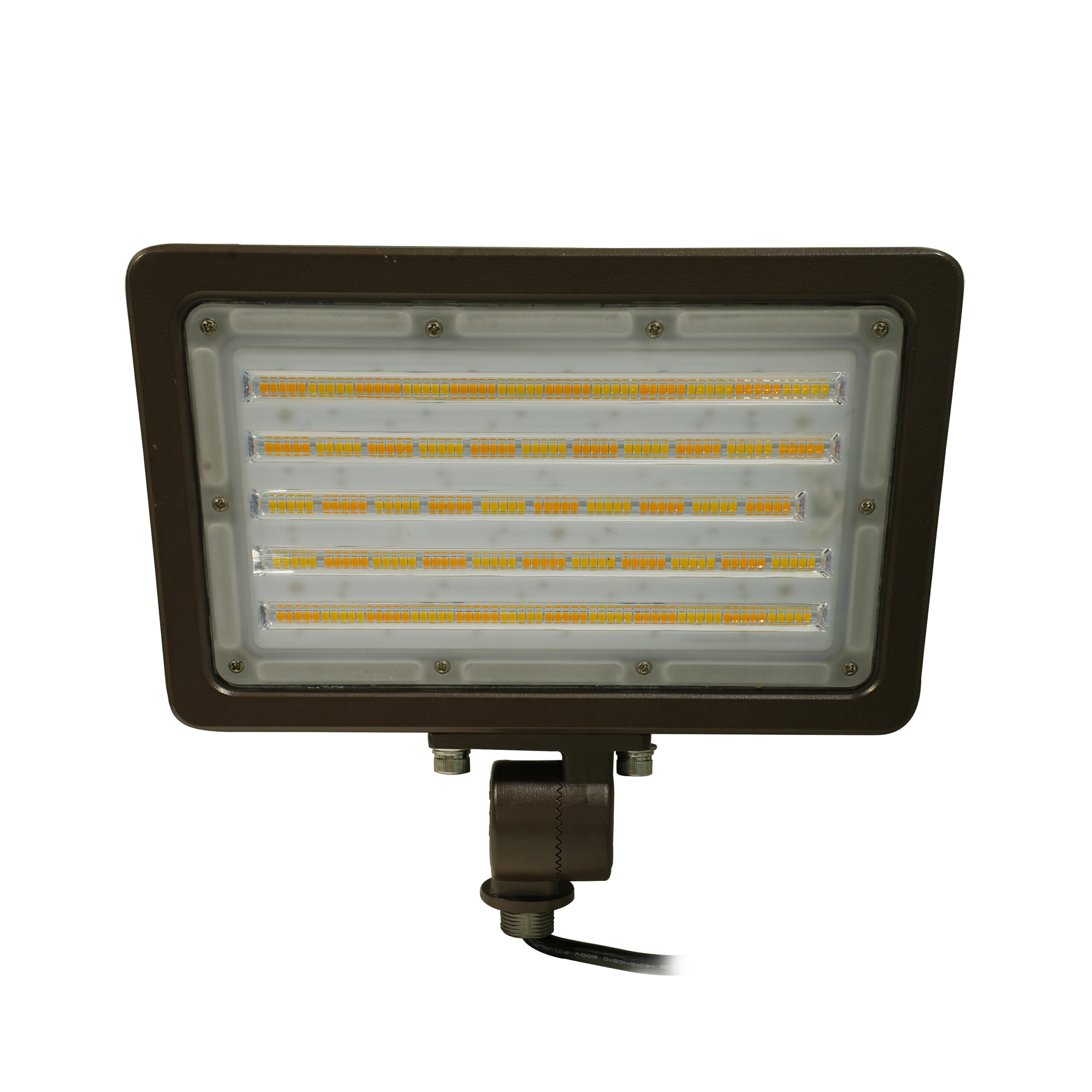

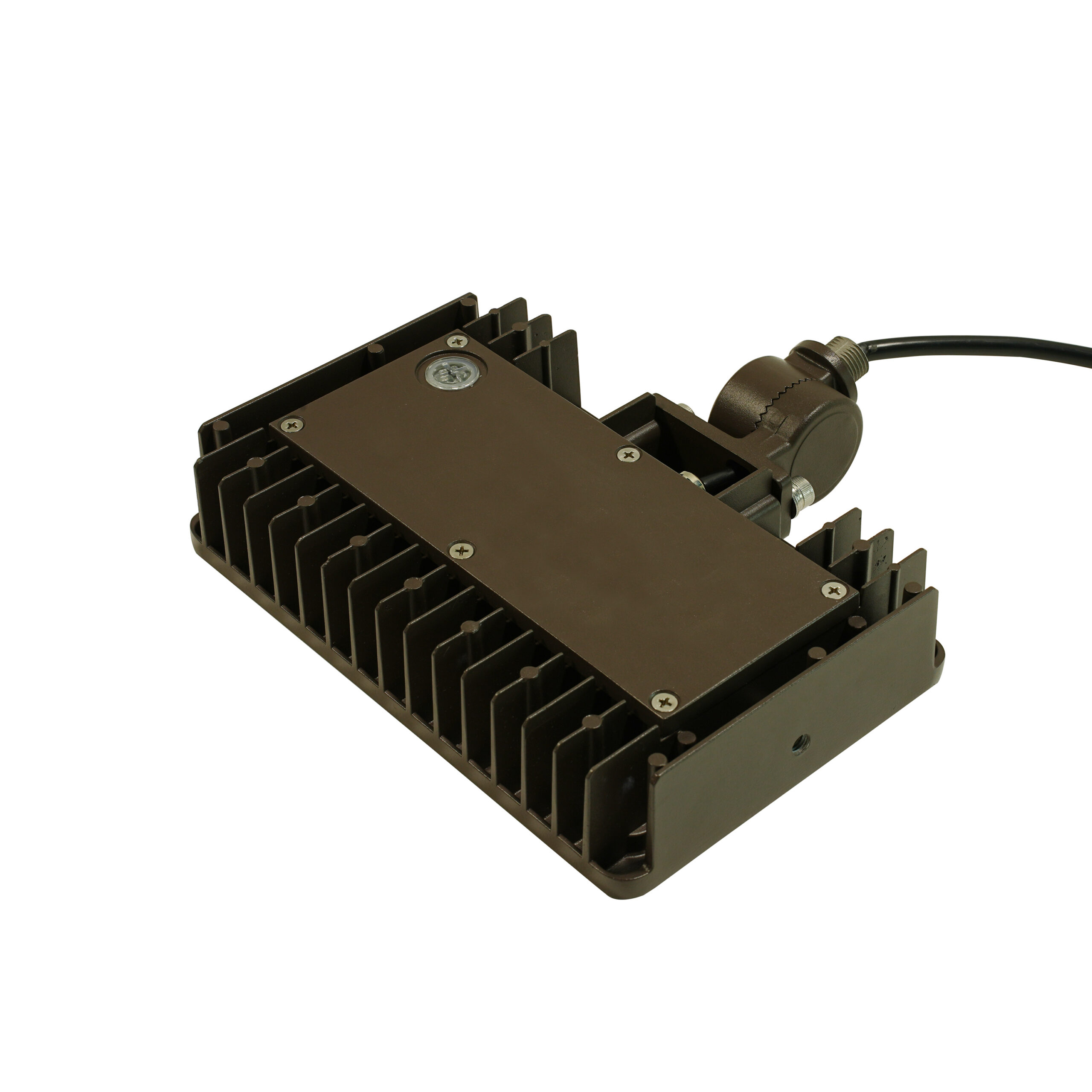

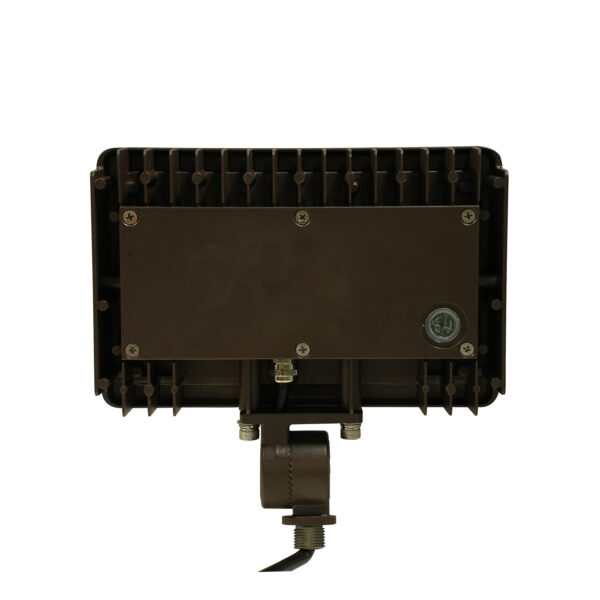

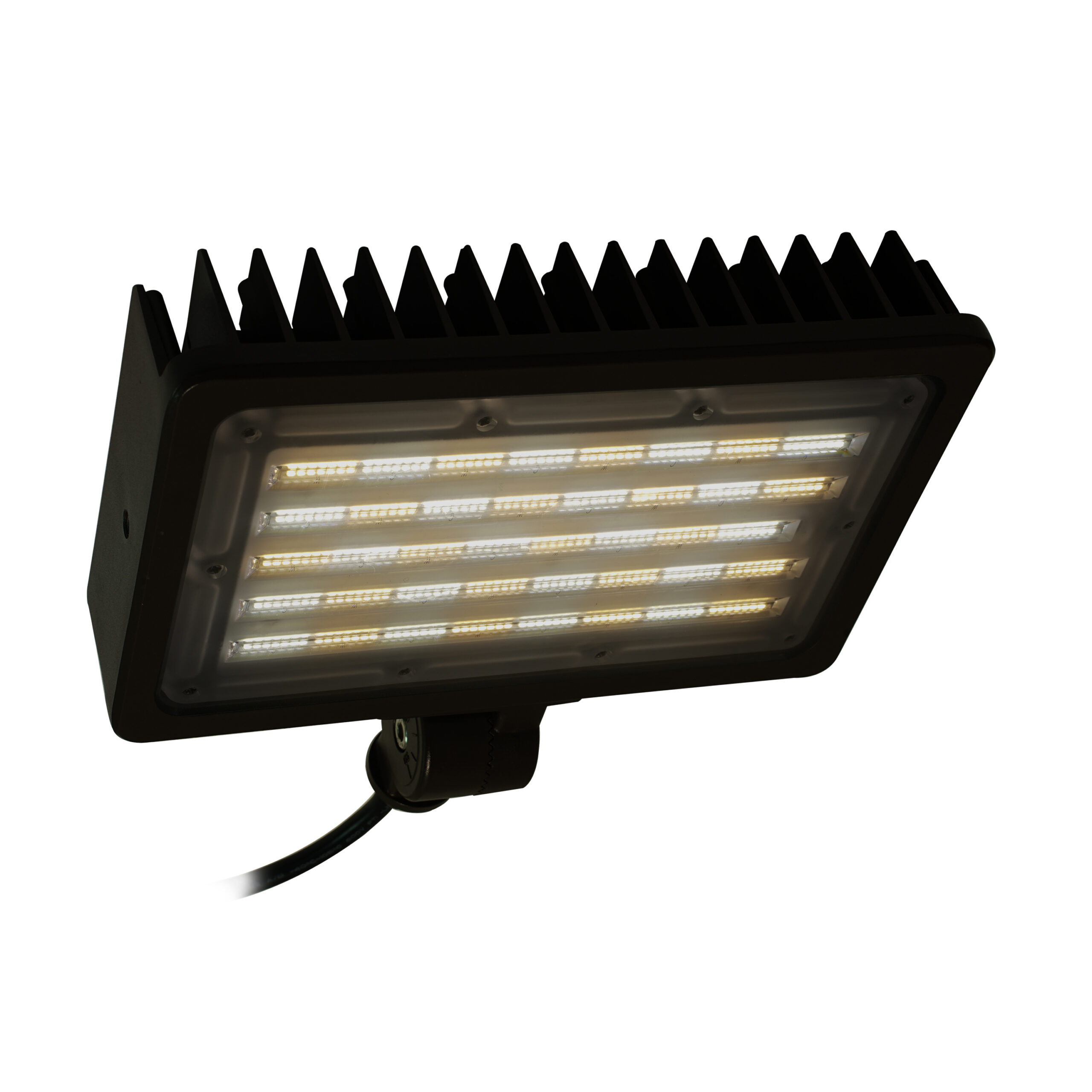

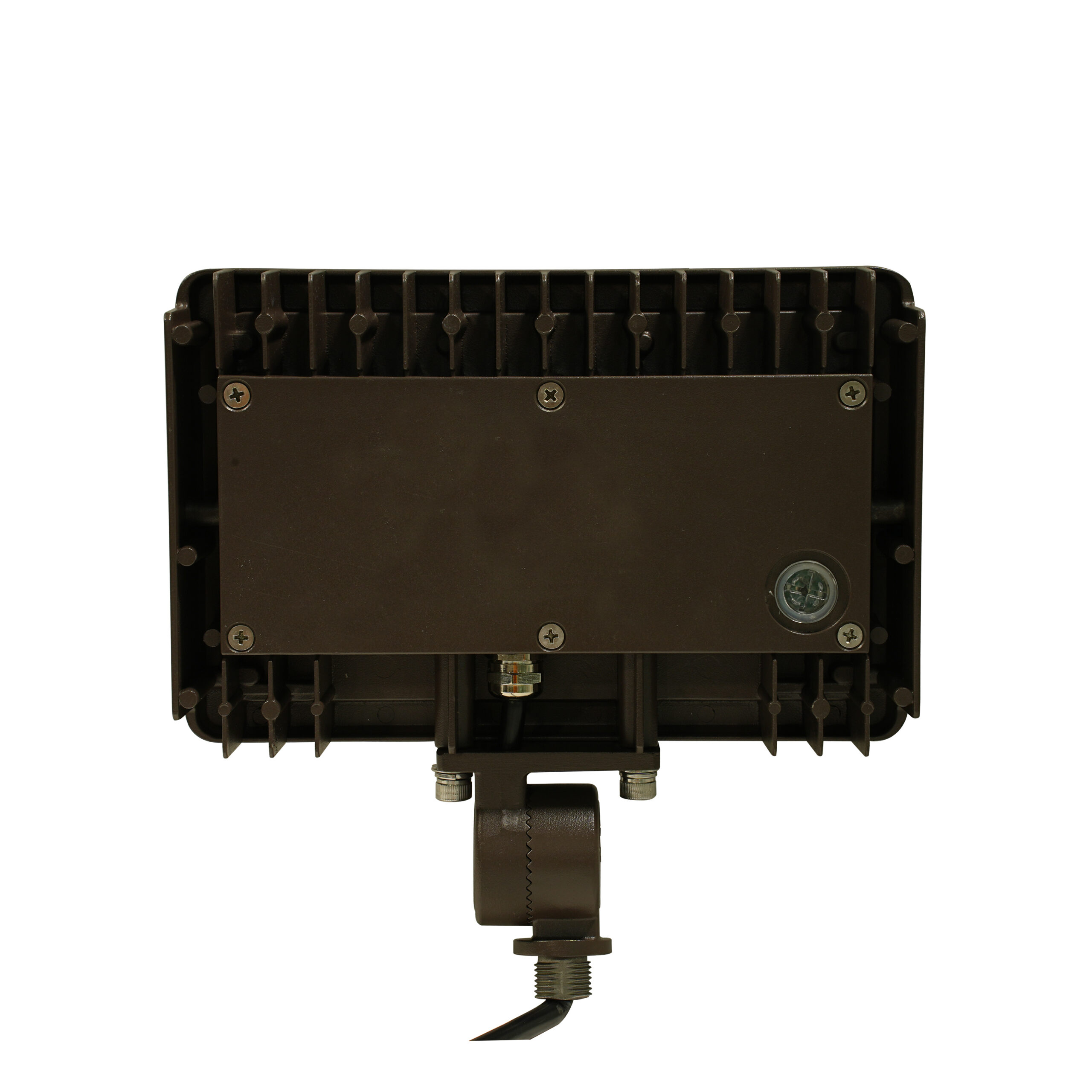

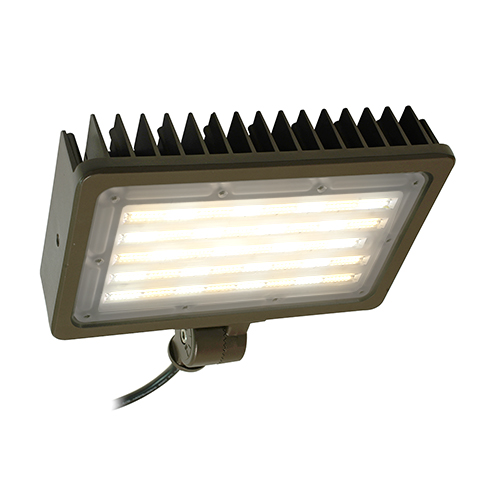

Rugged and versatile, this LED area light features a premium dark bronze, die-cast aluminum housing with multiple mounting options, including standard knuckle and optional yoke mounts. Field-selectable CCT (3500K/4000K/5000K) and tri-lumen outputs deliver up to 15,775 lumens. Designed for durability, it includes 0-10V dimming, integrated photocell, 6kV surge protection, and long-life LEDs.

HOUSING

• Premium powder-coat, die cast aluminum, dark bronze housing.

ELECTRICAL

• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) . • Universal 120-277V AC voltage (50-60Hz) is standard. • 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch. • Incoming AC power cord = 3′. Incoming dimming cord = 3′ • Watertight, compression-type electrical connectors.
• Input transient surge protection = 6kV. • Power factor > 0.90. • Total Harmonic distortion < 20%.

OPTICAL SYSTEM

• Polycarbonate lens. • Field selectable 3500K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures. • 08-MPAL-16129L-3CCT Tri-lumen selectable provide a range of 8,421 to 15,775 nominal lumens.
• Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90). • LED color maintenance < -0.0012 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation. • Color rendering index > 80.

MOUNTING

• Knuckle mounting is standard. • Optional Yoke Mounting kit.
• Optional Arm Mounting kit.* • Optional Slip-fitter Mounting kit.*
* Only for 08-MPAL-16129L-3CCT, need to be used with ZZ-MPAL-MT-ADPT.

CODE COMPLIANCE

• cULus listed for wet locations. • Complies with FCC part 15, class A. • IP65 rated for ingress protection. • IK08 rated for impact protection.

WARRANTY

• 5-year warranty on all electronics and housing.
