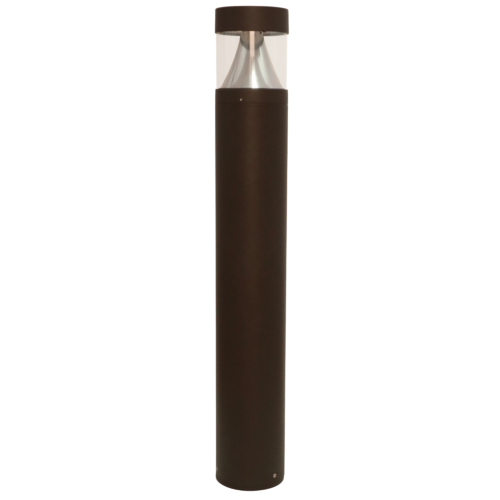

Cast aluminum housing with choice of dark bronze or black powder coat finish.
High-impact, polycarbonate lens.
Mounting
Easy installation in new construction or retrofit applications.
Electrical
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming drivers, are standard.
Surge protection = 4kV.
Power factor > 0.90.
Total harmonic distortion < 20%.
Optical System
Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
Long-life LEDs provide at least 70% of initial lumen output (L70) for >163,000 hours of operation, and at least 90% of initial lumen output (L90) for >50,000 hours of operation.**
LED chromaticity based on < 5-step ANSI quadrangles.
LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Provides a range of 905 to 3,296 nominal lumens and 69 to 148 nominal lumens per watt (lm/W).
Color rendering index (Ra) > 80.
Code Compliance
cULus listed for wet locations in ambient temperatures from -40°C to 55°C (-40°F to 131°F).
