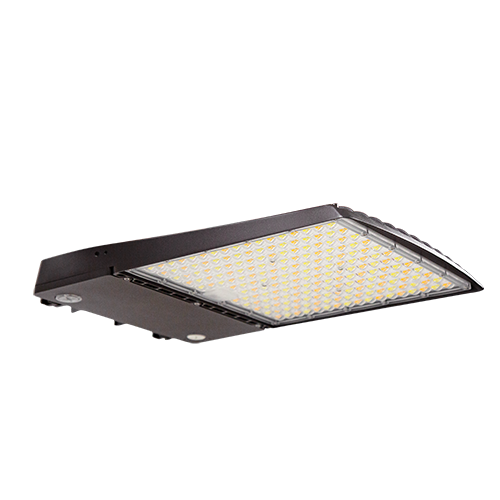

Sensor-Ready Multi-Purpose Area Light 24,000-40,000 Lumens-Selectable CCT

Model: 08-MPALSR-403224L-3CCT
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

Sensor-Ready Multi-purpose area light offers selectable output from 24,000 to 40,000 lumens. Selectable CCT. Available in T3 or T5 beam types. Select from 5 different mounting options for any application.  Multiple control options, including photocell and occupancy sensors.

HOUSING

Premium powder-coat, die cast aluminum, Bronze housing.

ELECTRICAL

•  Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
•  Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cords.
•  0-10V DC dimming drivers are standard.
•  IES roadway distributions include type III & V.
•  Watertight, compression-type electrical connectors.
•  Input transient surge protection = 6kV.
•  PF > 0.9; THD < 20%.

OPTICAL SYSTEM

•  Polycarbonate lens
•  Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
•  08-MPALSR-403224L-3CCT provides a range of 23,377 to 41,366 nominal lumens.
•  Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90). •  Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
•  LED chromaticity based on < 6-step ANSI quadrangles.
•  LED color maintenance < 0.0019 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
•  Color Rendering Index > 70.

MOUNTING

•  Optional Universal Mount (Arm and Slip-fitter combination).
•  Optional Adjustable Arm Mounting kit.
•  Optional Slip-fitter Mounting kit.
•  Optional Yoke Mounting kit.
•  Optional Trunnion Mounting kit.
NOTE: Mounting hardware sold separately. One must be ordered. Pole tenons and tenon adapters available. See all mounting accessories on specification sheet.

CODE COMPLIANCE

•  cULus listed for wet locations.
•  Complies with FCC Part 15, class A.
•  IP65 rated for ingress protection.
•  IK08 rated for impact protection.
