Sloped Ceiling Housing – IC New Work AIR TIGHT Can – 5/6 Inch

Rated 0 out of 5

Model: 11-R6SLNWIC

View Spec Sheet

Description

Features

Warranty & Listings

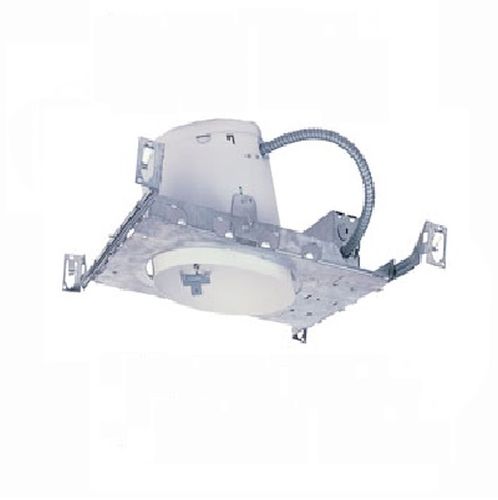

6″ SLOPED ANGLED CEILING HOUSING – IC NEW WORK AIR TIGHT CAN

For new work construction, this 6 inch IC (insulation contact) sloped incandescent recessed housing accommodates up to 75W R30/PAR 30 lamps with proper trim. Thermal protector safeguards against overheating, and housing is UL listed.

Safe, thermally protected, for damp locations
Easy access housing
Adjustable socket for flexibility in lamping options
Time saving junction box design
Easy installation
Used for 2/12 to 6/12 pitched ceilings 10-30 degrees
UL damp location
7 x 7H

▪Field selectable 3500k (warm/neutral white), 4000k (neutralwhite), and 5000k (cool white) color temperatures.*
▪Long-life LEDs provide 196,000 hours of operation with atleast 70% of initial lumen output (L70), and 60,000 hours with atleast 90% of initial lumen output (L90).**
▪LED chromaticity based on < 4-step ANSI quadrangles.
▪LED color maintenance < 0.002 chromaticity shift (Δu’v’) overthe initial 6,000 hours of operation.
▪SLS-4FT-5L-LKFS provides a range of 3,500 to 5,000 nominallumens.*
▪SLS-8FT-10L-LKFS provides a range of 7,000 to 10,000nominal lumens.*
▪Universal 120-277 AC voltage (50-60Hz) is standard.
▪0-10vdc dimming drivers are standard.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index > 80.
▪Steel housing and PMMA lens.
▪Optional emergency drivers and occupancy sensors areavailable.
▪Easy installation in new construction or retrofit.
