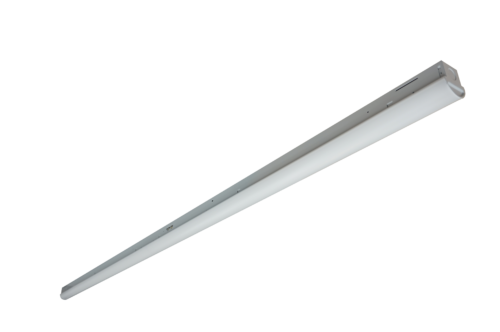

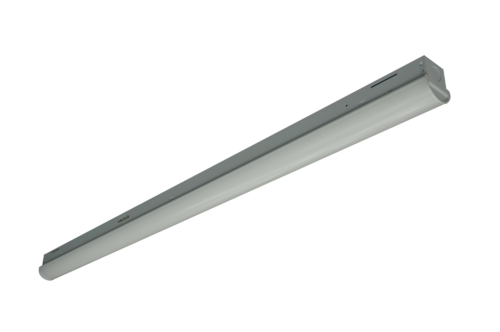

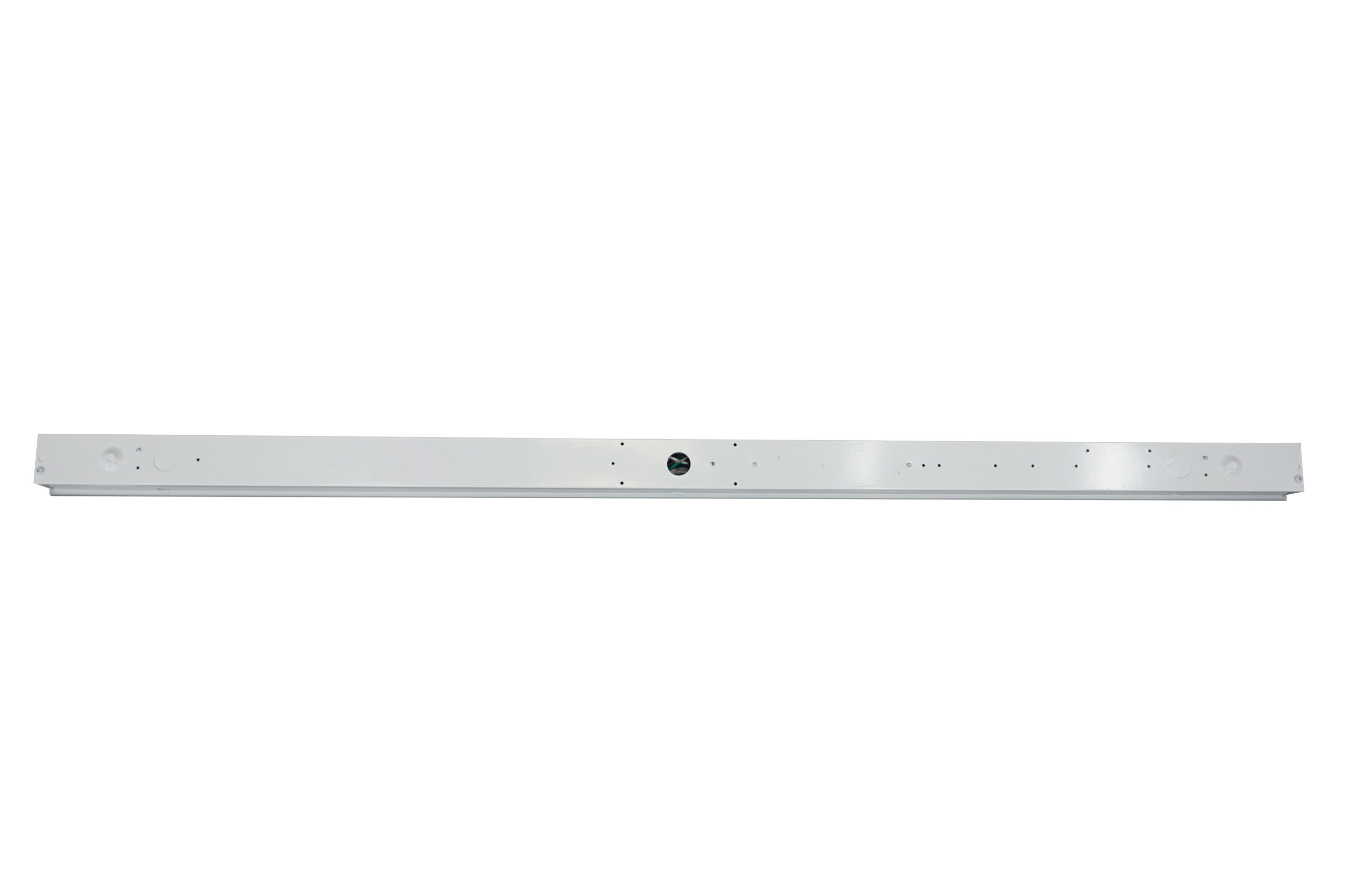

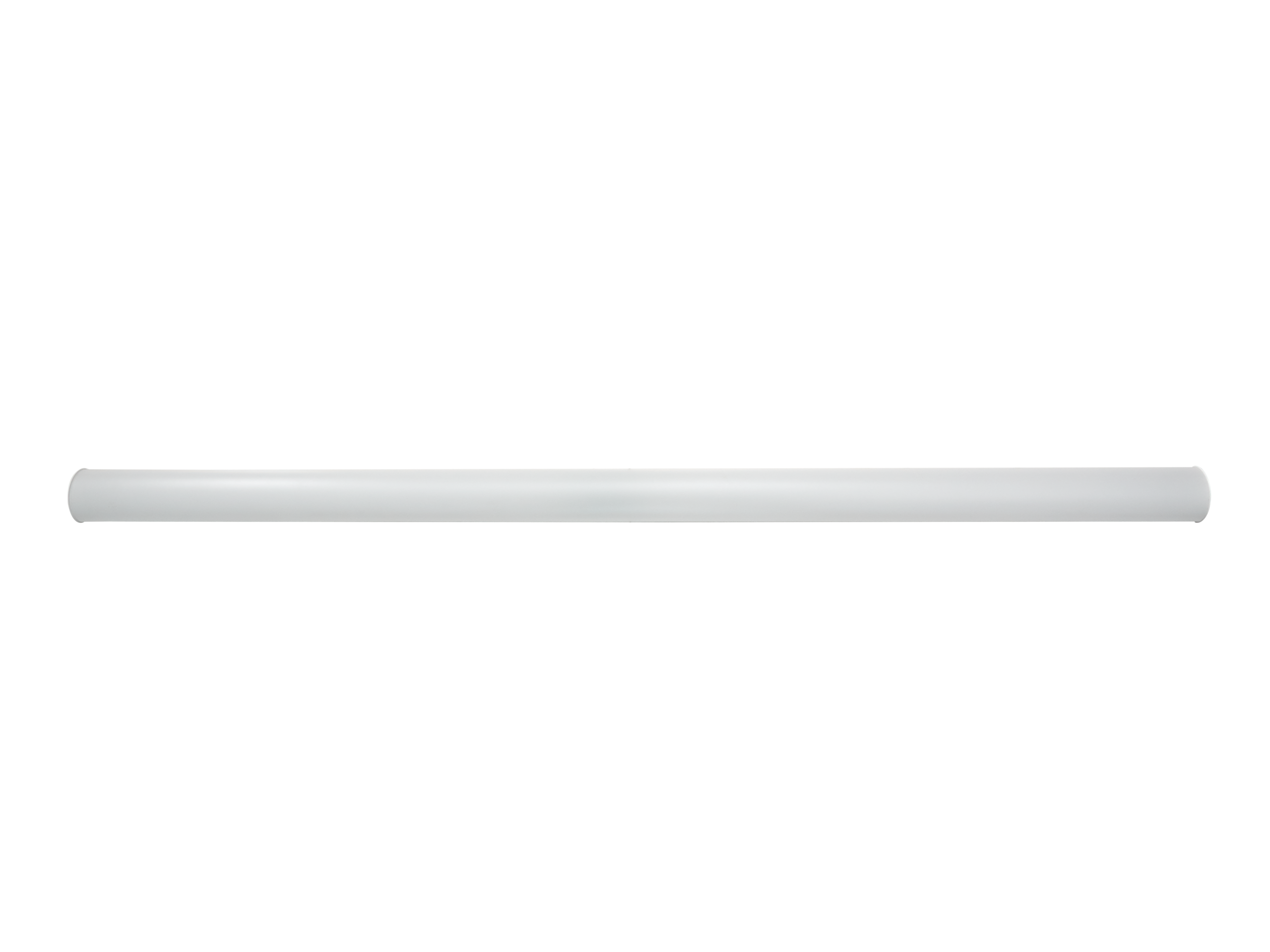

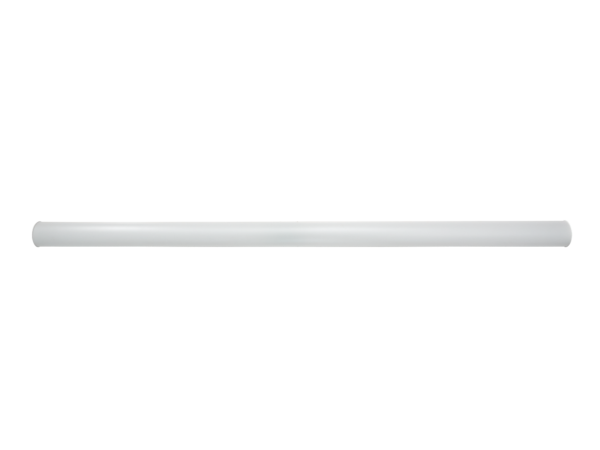

Slim Strip Light – Lumen & Kelvin Field Selectable

Model: 05-SLS-LKFS
Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980
or
This field is for validation purposes and should be left unchanged.
Name(Required)
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Our lighting professional will call you to provide pricing.

Strip light, slim profile, LED light, Available in 4-ft and 8-ft lengths. Lumen field selectable, CCT selectable, available emergency driver, available occupancy sensor, blue-tooth controls, on-board dimmer, 0-10v dimming. Great for offices, commercial and industrial application. Good for hallways, schools, rest room, locker room, and garages.

Housing
  • Steel housing and PMMA lens. **L70 hours are IES TM 21 11 calculated hours.
Mounting
  • Easy installation in new construction or retrofit.
Electrical
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming drivers are standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Optional emergency drivers and occupancy sensors are available.
Optical System
  • Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
  • Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90).**
  • LED chromaticity based on < 4-step ANSI quadrangles.
  • LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • 05-SLS-4FT-5L-LKFS provides a range of 3,500 to 5,000 nominal lumens.
  • 05-SLS-8FT-10L-LKFS provides a range of 7,000 to 10,000 nominal lumens.
  • Color rendering index > 80
Code Compliance
  • cULus approved for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
  • Complies with FCC Part 15, Class A.
  • Complies with IEEE C.62.41-1991, Class A input transient surge protection (1.0kV).
Warranty
  • 5-year warranty of all electronics and housing.
