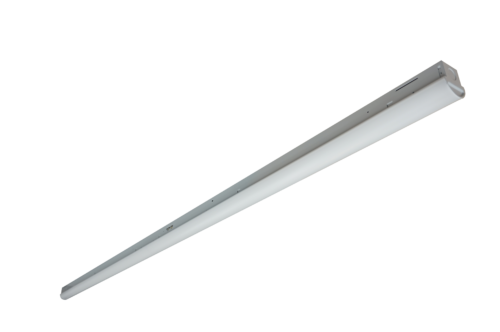

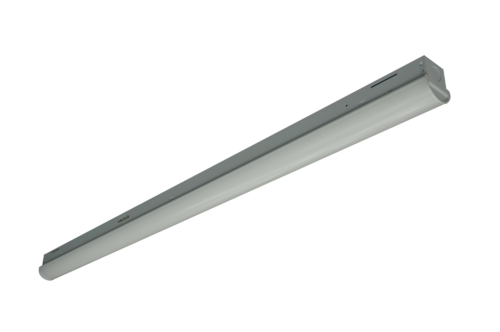

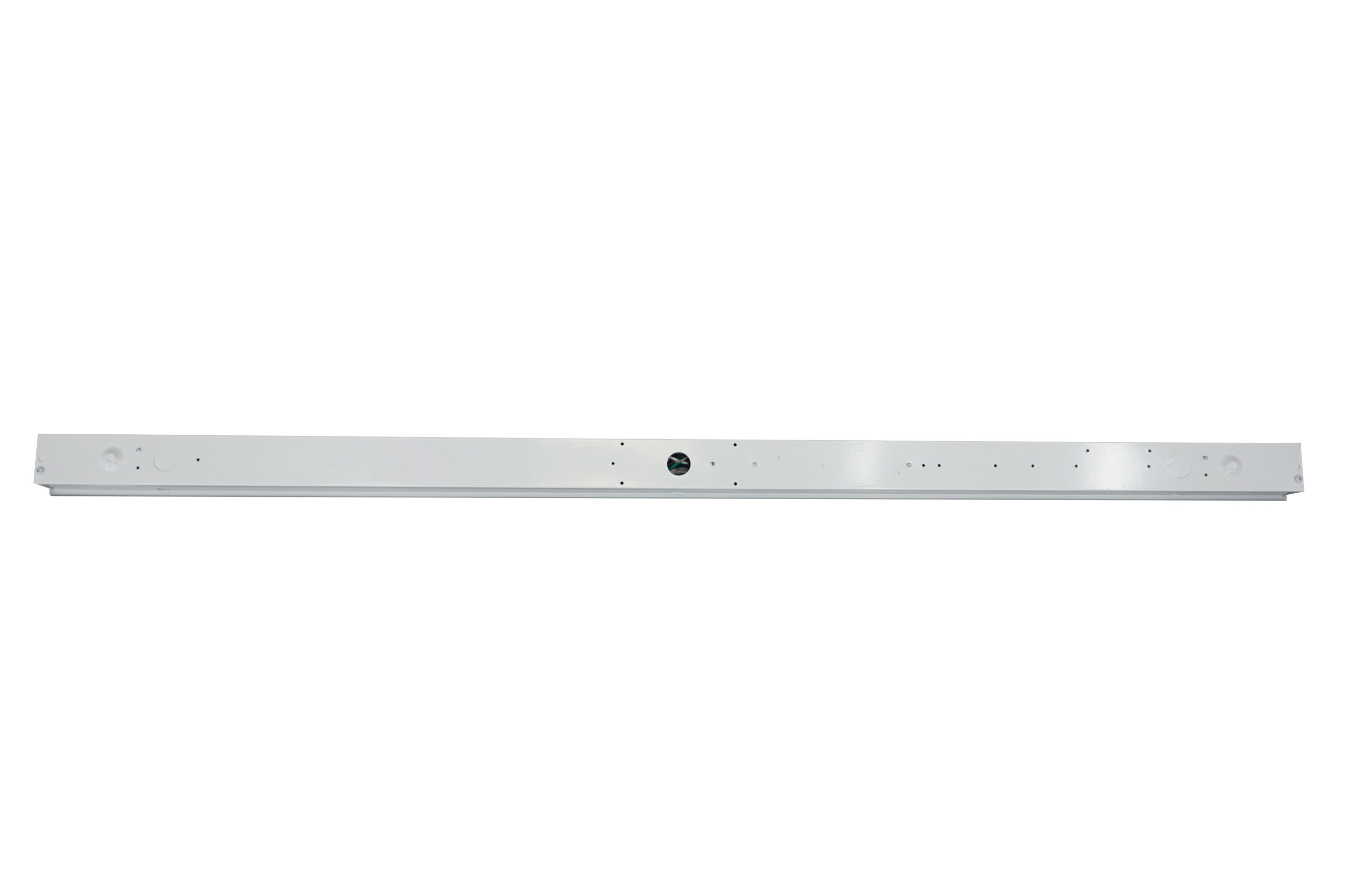

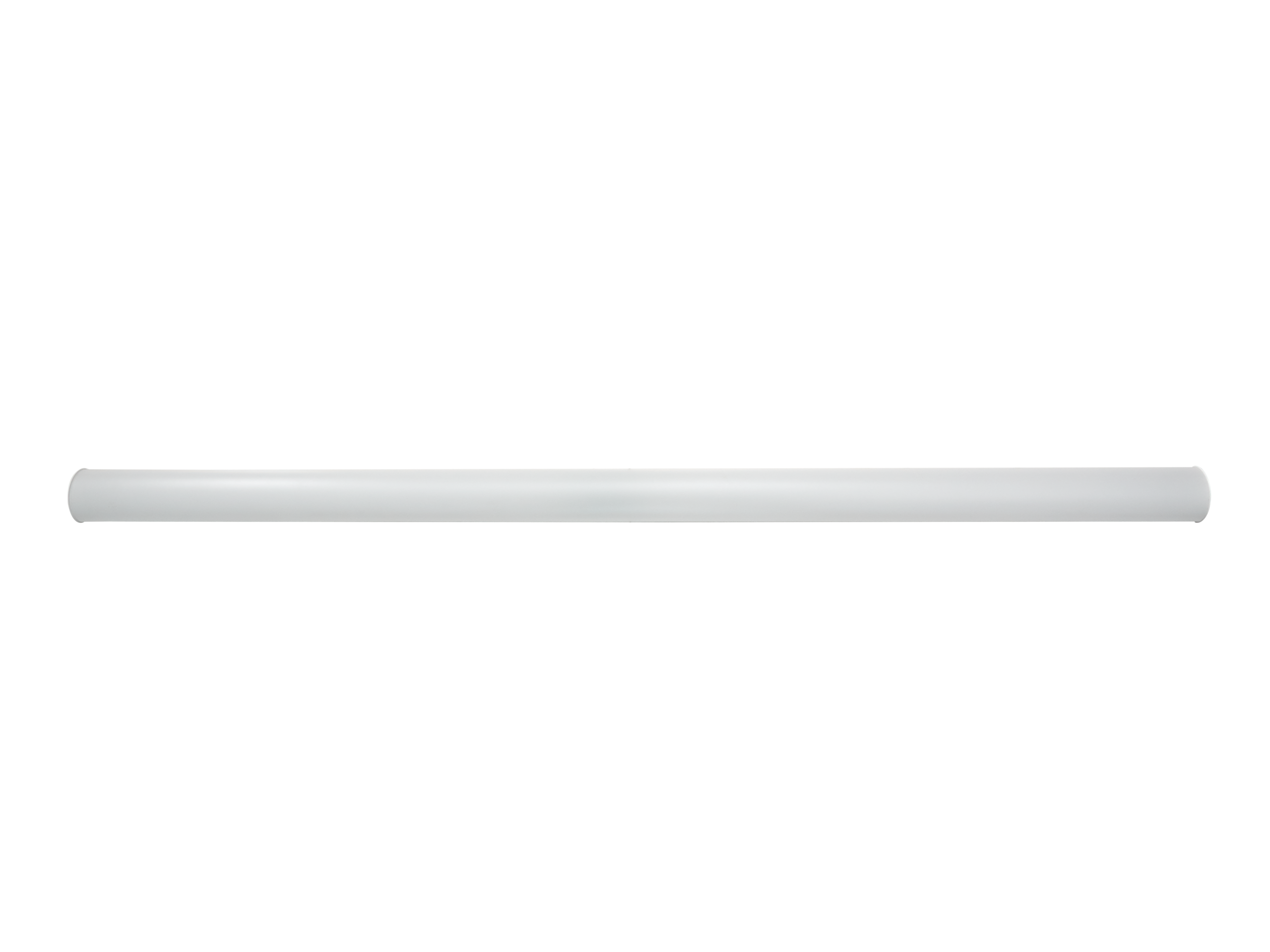

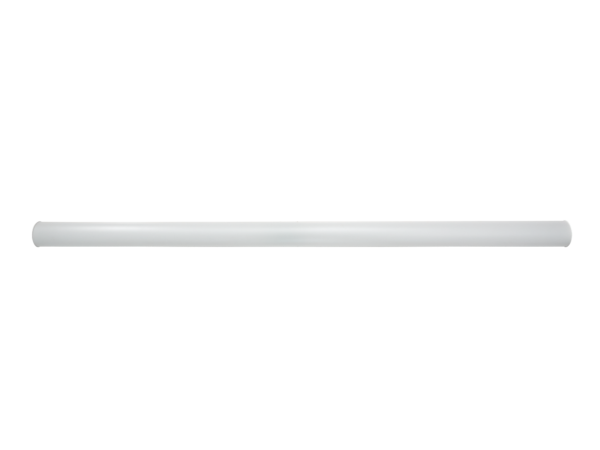

Slim Strip Light – Lumen & Kelvin Field Selectable

Model: 05-SLS-LKFS
Description

Strip light, slim profile, LED light, Available in 4-ft and 8-ft lengths. Lumen field selectable, CCT selectable, available emergency driver, available occupancy sensor, blue-tooth controls, on-board dimmer, 0-10v dimming. Great for offices, commercial and industrial application. Good for hallways, schools, rest room, locker room, and garages.

Housing
  • Steel housing and PMMA lens. **L70 hours are IES TM 21 11 calculated hours.
Mounting
  • Easy installation in new construction or retrofit.
Electrical
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming drivers are standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Optional emergency drivers and occupancy sensors are available.
Optical System
  • Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
  • Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90).**
  • LED chromaticity based on < 4-step ANSI quadrangles.
  • LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
  • 05-SLS-4FT-5L-LKFS provides a range of 3,500 to 5,000 nominal lumens.
  • 05-SLS-8FT-10L-LKFS provides a range of 7,000 to 10,000 nominal lumens.
  • Color rendering index > 80
Code Compliance
  • cULus approved for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
  • Complies with FCC Part 15, Class A.
  • Complies with IEEE C.62.41-1991, Class A input transient surge protection (1.0kV).
Warranty
  • 5-year warranty of all electronics and housing.
