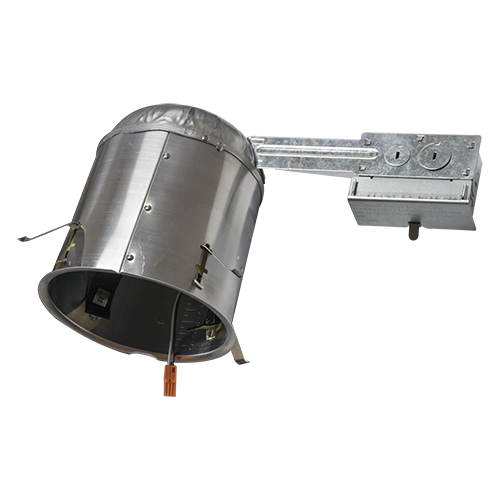

5/6 Inch Dedicated LED Remodel IC Rated Can

Model: 11-6C-LED-RIC-NND
Description

5/6″ DEDICATED LED REMODEL IC RATED CAN

6″ LED dedicated IC housing is designed for remodel installations and are suitable for use in ceilings where the housing can be in direct contact with insulation.  Remodel housing installs into existing drywall or wood ceiling with no above access.  Air tight construction reduces energy costs by reducing the amount of air leakages through the ceiling.

  • cULus Listed for Damp Location
  • cULus Listed for Feed Through
  • Certified under ASTM-E283 for Air Tight construction
  • Meets state of California title 24 requirements
  • Listed for through branch circuit wiring
  • Contains one 1-1/8″, six 7/8″ knockouts and four romes pryouts with strain relief.
  • Housing adjusts from 5/8″ – 1-3/8″ to accommodate various ceiling thickness.
  • Four remodel clips secure housing and accommodates 1/2″ abd 5/8″ ceiling materials.
ELECTRICAL SPECIFICATIONS Input • Input Voltages: Universal120 or 277VAC, 60Hz (User selectable with (2) wire jumpers provided) • Input Frequencies: 60Hz ±2% • Input Protection: Provided by Service Panel rated at 20 amps maximum Output • Output Voltages: 120 or 277VAC (60Hz) • Efficiency Rating: 98% at full rated load (line) • Waveform: Sinusoidal (digitally controlled) • Static Voltage: ±5% during battery discharge. 0-100% linear load. • Output Frequencies: 60Hz. ±0.3Hz during emergency cycle • Output Distortion: Less than 3% THD (linear load) • Transfer Time: Less than 1.0 second. • Load Power Factor Range: 0.88 Lead to 0.88 Lag. • Minimum Loading: 0% of rated system capacity. • Output Protection: Circuit breaker. HOUSING Heavy duty steel cabinet is finished in white based-on powder providing scratch and corrosion resistance. MOUTING Designed for mounting to walls by means of keyhole slots provided in the back of the unit housing. BATTERY Battery: Sealed Lead Calcium (10 year life) Battery Voltage: 72VDC for 03-LPS-1150, Runtime: 90-minutes standard- based on battery performance at (25°C). Other runtimes available, consult factory. Battery Protection: Low Voltage Battery Disconnect protects the battery from being severely damaged by deep discharge during prolonged power failures. Reverse Polarity, DC Overload and Short Circuit Protection provided by a DC input breaker and fuse. CHARGER Charger Type: Fully automatic, temperature compensated, dual-mode charger Power Consumption: (charger only) 73W maximum (6.7W in standby) for 03-LPS-1150 model. Recharge Duty Cycle: Meets UL924 requirements Controls: Momentary test switch, AC-ON, Charge-ON and Inverter-ON LED indicator lights Safety Circuitry: AC Lockout prevents battery discharge prior to initial unit power-up. Brownout Protection automatically switches the unit to emergency mode when utility voltage is significantly reduced.
