8″ Architectural Downlight – Lumen and Kelvin Field Selectable

Rated 0 out of 5

Model: 11-CDR8-5L-LKFS

View Spec Sheet

Description

Features

Warranty & Listings

8″ Architectural Downlight – Lumen and Kelvin Field Selectable

Housing

Aluminum housing.

Mounting

Easy installation in new construction or retrofit applications.
Compatible with 8.10” ceiling cut-outs and 8” mounting frames.
Type IC. Access above ceiling required. Covered ceiling mount only.

Electrical

Uses 50, 40, or 30 nominal watts.
Universal 120-277 AC voltage (50-60Hz) is standard.
Power factor > 0.90.
0-10VDC dimming is standard.

Optical System

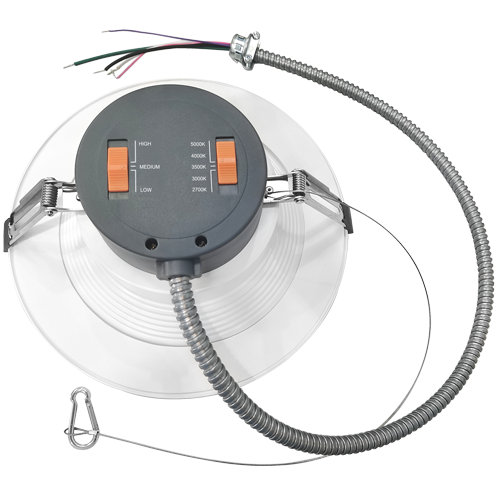

Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide at least 70% of initial lumen output (L70) for 149,000 hours of operation. *
Color rendering index (Ra) > 90.
