Linear High Bay – Lumen and CCT Selectable- Sensor Ready-Dimmable – 4K/5K Selectable – 120-277V

Rated 0 out of 5

Model: 07-HBLSR

View Spec Sheet

Ask for Price

Request product pricing

Call for Pricing now: 833-504-9980

Call for pricing now

Comments

This field is for validation purposes and should be left unchanged.

Name(Required)

Email(Required)

Phone(Required)

This field is hidden when viewing the form

Division

This field is hidden when viewing the form

Form Name

This field is hidden when viewing the form

Product URL

CAPTCHA

Build an online quote instead

Our lighting professional will call you to provide pricing.

Model

Input Voltage

Emergency Drivers

Clear

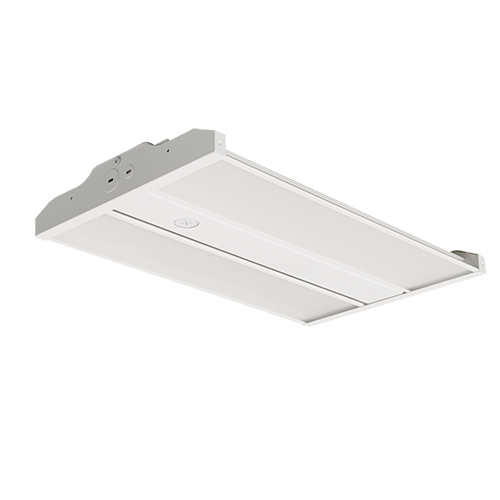

LUMEN & KELVIN SELECTABLE LINEAR HIGH BAY

The LED High Lumen Linear High Bay luminaire offers 3 levels of light output and two color temperatures per model with just the flip of a switch. Designed to illuminate commercial, industrial & retail settings such as warehouses, the 07-HBLSR is sensor-ready. The sensor just twists in, with no wiring required. With a painted, steel housing, the HBLSR provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

FEATURES

Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures.
Long-life LEDs provide 134,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90).**
LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Tri-lumen selectable delivers 12,000 to 60,000 nominal lumens
Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
Emergency driver option available. (See spec sheet)
Medium distribution is standard with optional narrow or wide distribution lenses.
Universal 120-277V AC voltage (50-60Hz) is standard. 347-480V achieved with step-down transformers is optional.
0-10vdc dimming drivers are standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.
Painted steel housing (stamped) and polycarbonate lenses are standard.
Wire guards available.

MOUNTING

Surface mount kit – all models (not compatible with UNC or EM25 options)
Pendant mount for HBLSR – all models (not compatible with UNC or EM25 options)
Cable mount kit, 3 meters long – all models
Cable mount kit, 5 meters long – all models

Code Compliance

cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
07- HBLSR-181512L-4K5K = 55°C (131°F).
Input transient surge protection = 6kV.
Complies with FCC Part 15, class A.

Warranty
