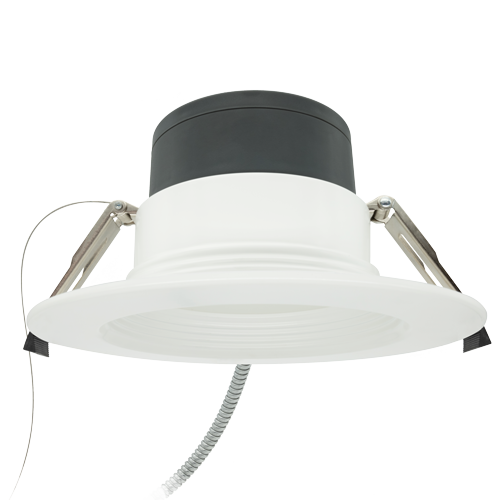

6″ Round Downlight – Lumen and Kelvin Field Selectable
Housing
Premium powder-coat, aluminum, white housing.
Electrical
Universal 120-277V AC voltage (50-60Hz) is standard.
0-10VDC dimming drivers are standard.
21.65” flexible metal conduit with additional 6” of conductor is standard.
Beam angle 50°.
Input transient surge protection = 1kV.
Type IC.
Power factor > 0.90.
Total Harmonic distortion < 20%.
Optical System
Polycarbonate diffuser.
Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
Tri-Lumen selectable delivers 1,000 to 2,000 nominal lumens*.
Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70) and 44,000 hours with at least 90% of initial lumen output (L90).
LED color maintenance < -0.0039 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Color rendering index > 90%
Mounting
Recessed in ceiling, new construction or retrofit.
Access above ceiling required.
Covered ceiling mount only.
Compatible with 6.30” ceiling cut-outs and 6” mounting frames
